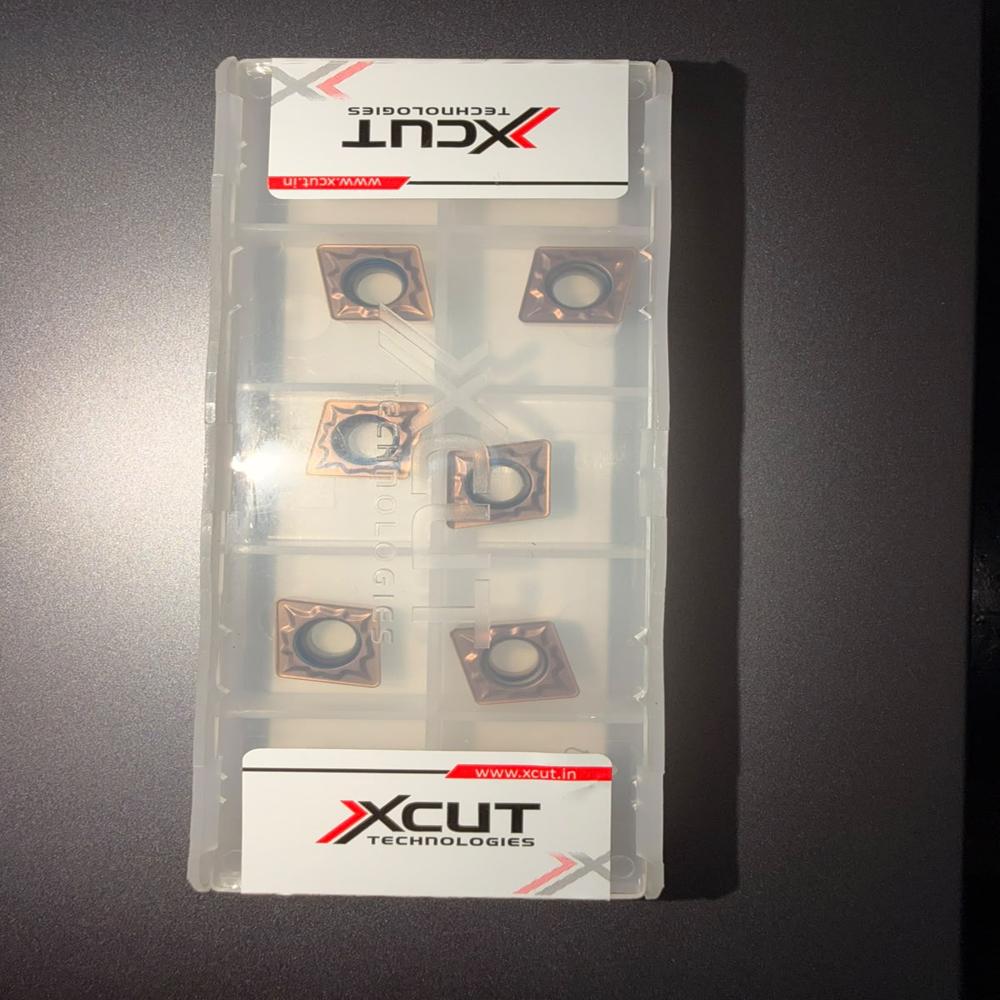

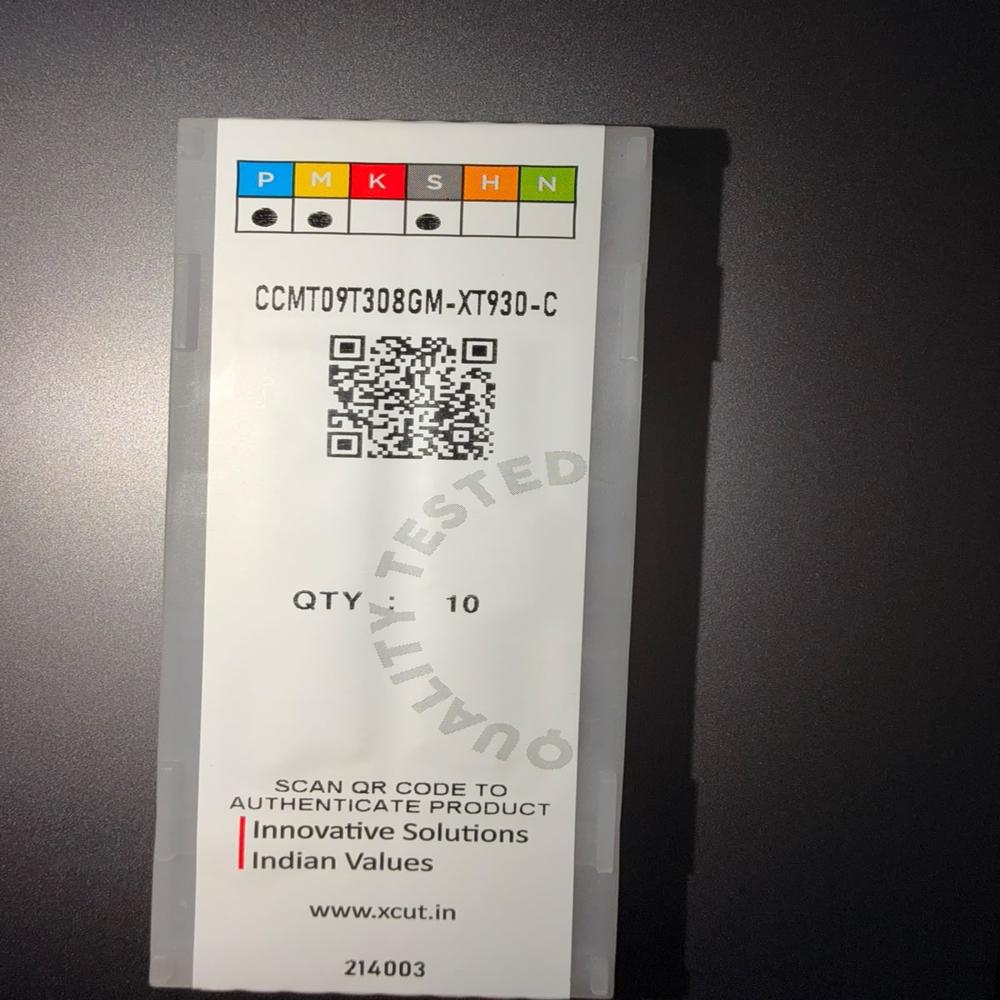

Name: CCMT09T308GM- XT930-C
Brand: SHREE JAGDISH ENTERPRISES
Price: 450.0 INR
Availability: InStock

CCMT09T308GM- XT930-C Specification

Shape
80 Diamond (Rhombic)

Corrosion Resistant
CVD Coated

Grade
XT930-C

Thickness
3.97 Millimeter (mm)

Usage
INDUSTRIAL

Material
Tungsten, carbide

Size
9

Product Type
TURNING INSERT

Application
External Turning, Internal Turning, Facing, Finish Turning, Semi-Finishing

Color
BRONZE

CCMT09T308GM- XT930-C Trade Information

Minimum Order Quantity
30 Pieces

Delivery Time
5 Days

About CCMT09T308GM- XT930-C

The CCMT09T308GM-XT930-C is a premium 80 diamond positive carbide turning insert designed for finishing and semi-finishing operations. Featuring the GM chipbreaker and XT930-C coated grade, it offers excellent wear resistance, smooth chip control, and long tool life. It is ideal for CNC turning of steel, stainless steel, and cast iron.

Technical Specifications

Specification	Details
Model	CCMT09T308GM-XT930-C
Product Type	Indexable Turning Insert
Material	Cemented Carbide
Grade	XT930-C
Coating	CVD Coated
Shape	80 Diamond (Rhombic)
Insert Type	Positive
Chipbreaker	GM
Insert Size	09
Workpiece Material	Steel, Stainless Steel, Cast Iron
ISO Application	P, M, K
ISO Tolerance	M
Insert Clearance	7
Inscribed Circle (IC)	9.525 mm
Cutting Edge Length	9.7 mm
Thickness (S)	3.97 mm
Corner Radius (RE)	0.8 mm
Hole Diameter (D1)	4.4 mm
Number of Cutting Edges	2
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 3.5 g
Pack Size	Usually 10 Pieces
Application	External Turning, Internal Turning, Facing, Finish Turning, Semi-Finishing

Dimensions follow the ISO CCMT09T308 standard.

Features

Premium cemented carbide substrate
XT930-C coated grade
GM chipbreaker
Excellent wear resistance
Smooth chip control
Long tool life
High machining accuracy
Stable cutting performance

Applications

External Turning
Internal Turning
Facing
Finish Turning
Semi-Finishing
CNC Turning

Suitable Materials

Carbon Steel
Alloy Steel
Stainless Steel
Cast Iron

Corrosion Resistance

Good corrosion resistance during storage
Excellent wear and oxidation resistance
Suitable for dry and coolant machining
