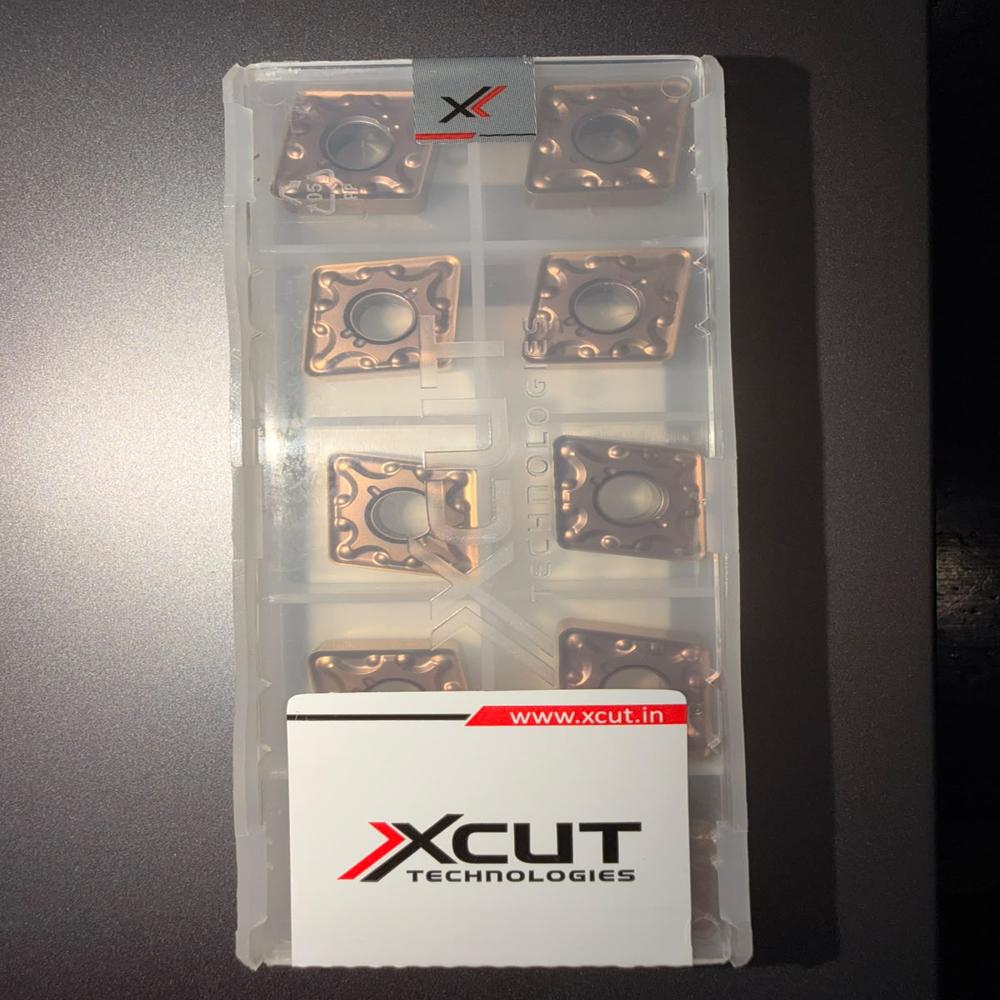

Name: CNMG INSERT CNMG120412CR-XT930-C
Brand: SHREE JAGDISH ENTERPRISES
Price: 450.0 INR
Availability: InStock

CNMG INSERT CNMG120412CR-XT930-C Specification

Shape
80 Diamond (Rhombic)

Corrosion Resistant
CVD COATED

Grade
XT930-C

Thickness
4.76 Millimeter (mm)

Usage
INDUSTRIAL

Material
Tungsten, carbide

Size
12mm

Product Type
TURNING INSERT

Application
External Turning, Internal Turning, Facing, Rough Turning, Semi-Finishing

Color
BRONZE

CNMG INSERT CNMG120412CR-XT930-C Trade Information

Minimum Order Quantity
30 Pieces

Delivery Time
5 Days

About CNMG INSERT CNMG120412CR-XT930-C

The CNMG120412CR-XT930-C is a premium 80 diamond negative carbide turning insert designed for medium to rough turning operations. Featuring the CR chipbreaker and XT930-C CVD-coated grade, it offers excellent wear resistance, superior chip control, and extended tool life. It is ideal for CNC machining of steel, stainless steel, and cast iron in continuous and interrupted cutting conditions. XT930-C is optimized for stainless steel and also performs well on steel applications.

Technical Specifications

Specification	Details
Model	CNMG120412CR-XT930-C
Product Type	Indexable Turning Insert
Material	Cemented Carbide
Grade	XT930-C
Coating	CVD Coated
Shape	80 Diamond (Rhombic)
Insert Type	Negative
Chipbreaker	CR
Insert Size	12 mm
Workpiece Material	Steel, Stainless Steel, Cast Iron
ISO Application	P, M, K
ISO Tolerance	M
Insert Clearance	0
Inscribed Circle (IC)	12.7 mm
Cutting Edge Length	12.9 mm
Thickness (S)	4.76 mm
Corner Radius (RE)	1.2 mm
Hole Diameter (D1)	5.16 mm
Number of Cutting Edges	8
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 8.5 g
Pack Size	Usually 10 Pieces
Application	External Turning, Internal Turning, Facing, Rough Turning, Semi-Finishing

Features

Premium cemented carbide
XT930-C CVD coating
CR chipbreaker
Excellent wear resistance
Smooth chip control
Long tool life
High edge strength
Stable machining performance

Applications

External Turning
Internal Turning
Facing
Rough Turning
Semi-Finishing
CNC Turning

Suitable Materials

Carbon Steel
Alloy Steel
Stainless Steel
Cast Iron

Corrosion Resistance

Good corrosion resistance
Excellent oxidation resistance
High wear resistance
Suitable for dry and coolant machining
