About SNMU CUTTER 50 mm Dia Face Milling Cutter

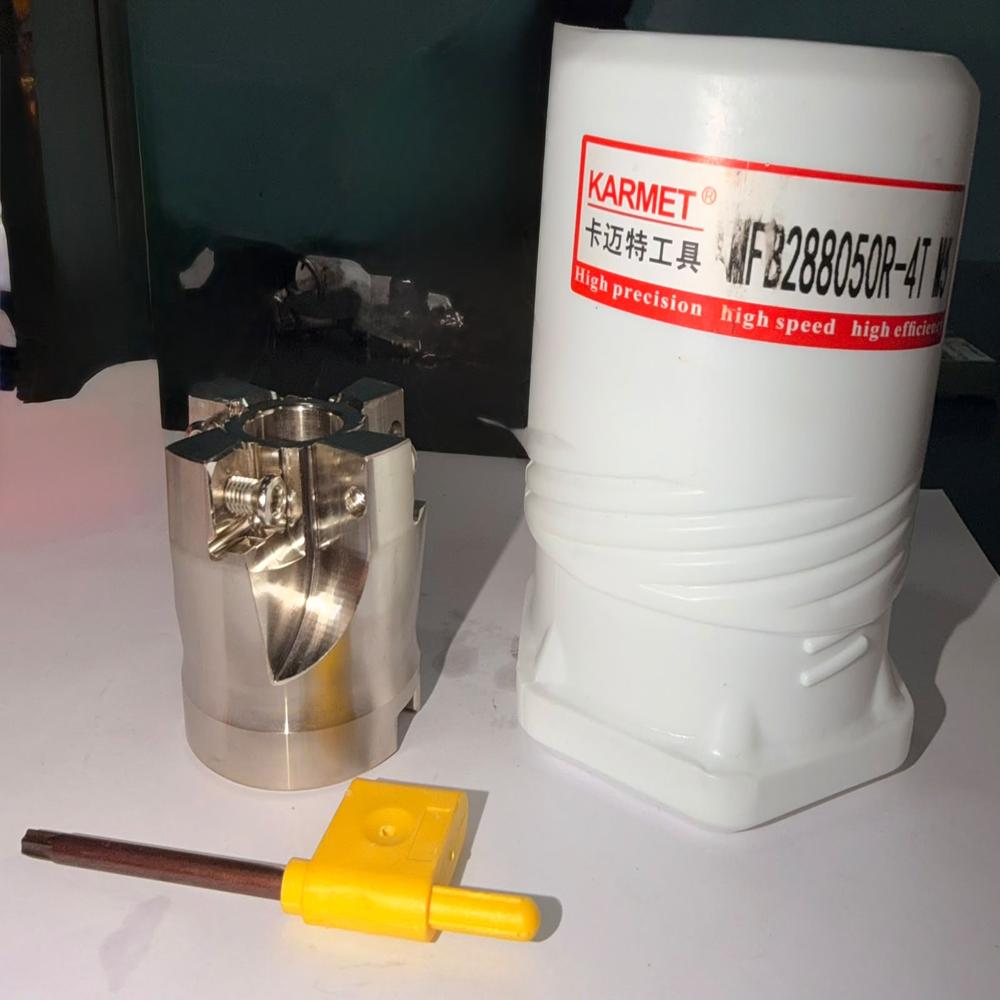

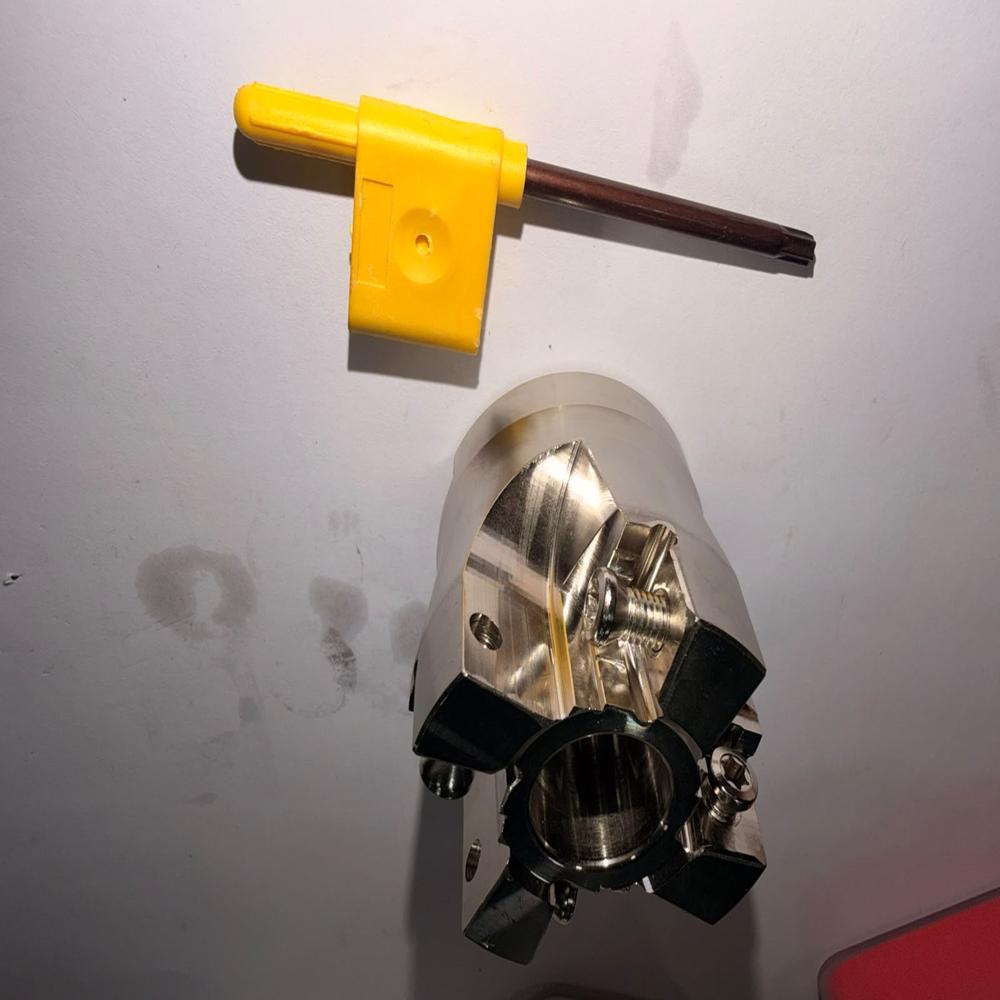

SNMU Cutter 50 mm Dia Face Milling Cutter

Product Description

The SNMU Cutter 50 mm Dia is a high-performance indexable face milling cutter designed for heavy-duty face milling and shoulder milling operations. Manufactured from high-strength hardened alloy steel, it is engineered to accommodate SNMU square carbide inserts, delivering excellent cutting stability, superior surface finish, and long service life. The cutter is suitable for CNC milling machines, VMCs, HMCs, and conventional milling machines for machining steel, stainless steel, cast iron, and alloy steel.

Technical Specifications

Specification	Details
Product Type	Indexable Face Milling Cutter
Model	SNMU Cutter 50 mm Dia
Product/Service Code	SNMU-50
Material	Hardened Alloy Steel
Compatible Insert	SNMU Series
Insert Shape	Square
Cutter Diameter	50 mm
Mounting Type	Arbor Mount
Arbor Bore	22 mm
Cutting Direction	Right Hand
Coolant Type	External Coolant Compatible
Suitable Machine	CNC Milling Machine, VMC, HMC, Conventional Milling Machine
Workpiece Material	Steel, Stainless Steel, Cast Iron, Alloy Steel
Weight (1 Piece)	Approx. 600700 g
Application	Face Milling, Shoulder Milling, Roughing, Semi-Finishing

---

Features

• Hardened alloy steel body
• Supports SNMU square inserts
• High rigidity
• Excellent wear resistance
• Stable cutting performance
• Smooth chip evacuation
• Easy insert replacement
• Long service life

Applications

• Face Milling
• Shoulder Milling
• CNC Milling
• Rough Milling
• Semi-Finishing
• General Engineering
• Die & Mold Machining
• Heavy Engineering

Suitable Materials

• Carbon Steel
• Alloy Steel
• Stainless Steel
• Cast Iron

Corrosion Resistance

• Black oxide surface finish
• Good corrosion resistance
• Rust-resistant alloy steel body
• Suitable for coolant-assisted machining
