About ADGT1204PER-D51 WSP45 Carbide Milling Insert

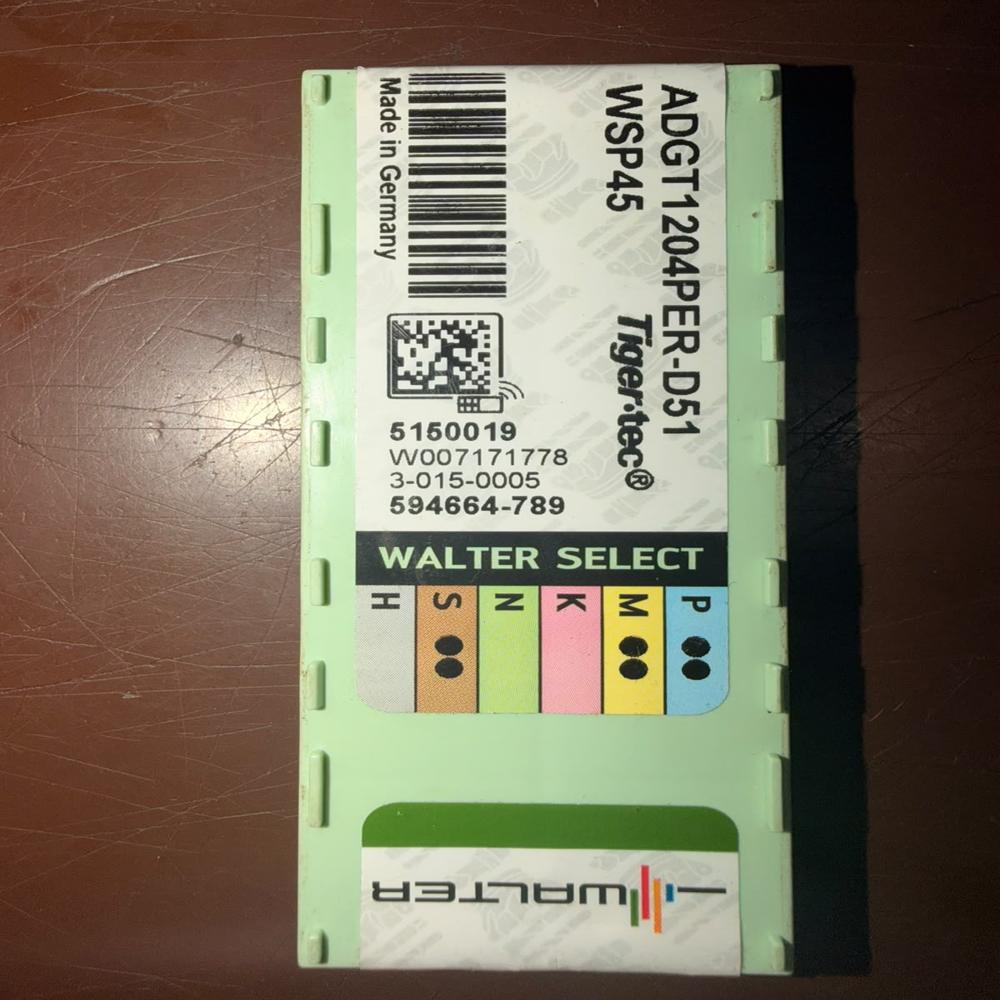

ADGT1204PER-D51 WSP45 Carbide Milling Insert

Product Description

The ADGT1204PER-D51 WSP45 is a premium positive parallelogram carbide milling insert from Walter, designed for high-performance face milling and shoulder milling. Featuring the D51 chipbreaker and WSP45 PVD-coated grade, it provides excellent wear resistance, smooth chip control, and long tool life. It is ideal for machining steel, stainless steel, and heat-resistant alloys.

Technical Specifications

Specification	Details
Brand	Walter
Model	ADGT1204PER-D51 WSP45
Product Type	Indexable Milling Insert
Material	Cemented Carbide
Grade	WSP45
Coating	PVD Coated
Shape	Parallelogram
Insert Type	Positive
Chipbreaker	D51
Insert Size	12 mm
Workpiece Material	Steel, Stainless Steel, Heat-Resistant Alloys
ISO Application	P, M, S
ISO Tolerance	G
Insert Clearance	15
Cutting Edge Length	13.6 mm
Width	8.4 mm
Thickness (S)	4.76 mm
Corner Radius (RE)	0.8 mm
Included Angle	85
Number of Cutting Edges	2
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 6.1 g
Pack Size	Usually 10 Pieces
Application	Face Milling, Shoulder Milling, CNC Milling

Features

Premium cemented carbide
WSP45 PVD coating
D51 chipbreaker
Excellent wear resistance
Smooth chip evacuation
Long tool life
Stable cutting performance
High machining accuracy

Applications

Face Milling
Shoulder Milling
CNC Milling
Roughing
Semi-Finishing

Suitable Materials

Carbon Steel
Alloy Steel
Stainless Steel
Heat-Resistant Alloys

Corrosion Resistance

Good corrosion resistance
Excellent oxidation resistance
High wear resistance
Suitable for dry and wet machining
