Send InquiryCnmg 120408
Price 300.0 INR/ Piece
Cnmg 120408 Specification
- Grade
- XT930C
- Thickness
- 4.76 Millimeter (mm)
- Shape
- 80 Diamond (Rhombic)
- Usage
- INDUSTRIAL
- Material
- carbide
- Product Type
- Indexable Turning Insert
- Weight
- 9.8 Grams (g)
- Application
- External Turning, Internal Turning Facing Rough Turning ,Semi-Finishing Profile Turning ,CNC Turning General Metal Machining
- Color
- BRONZE

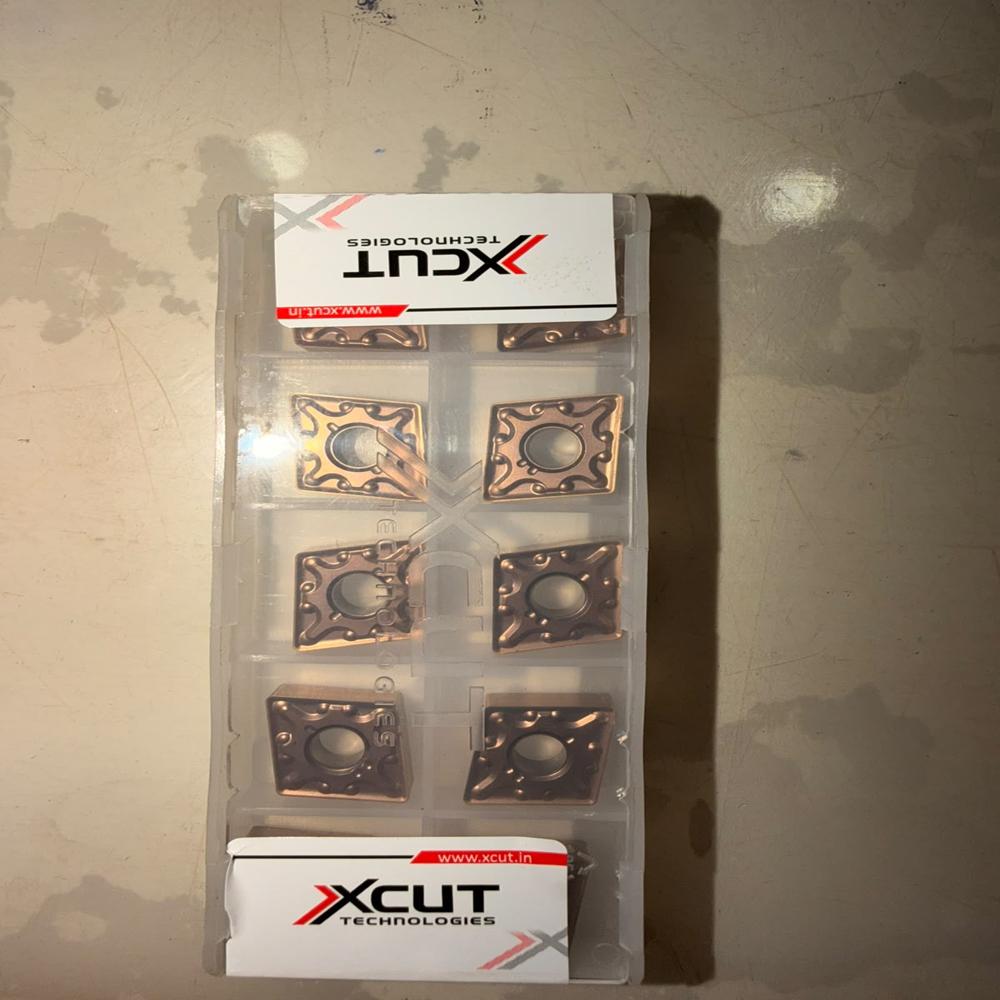

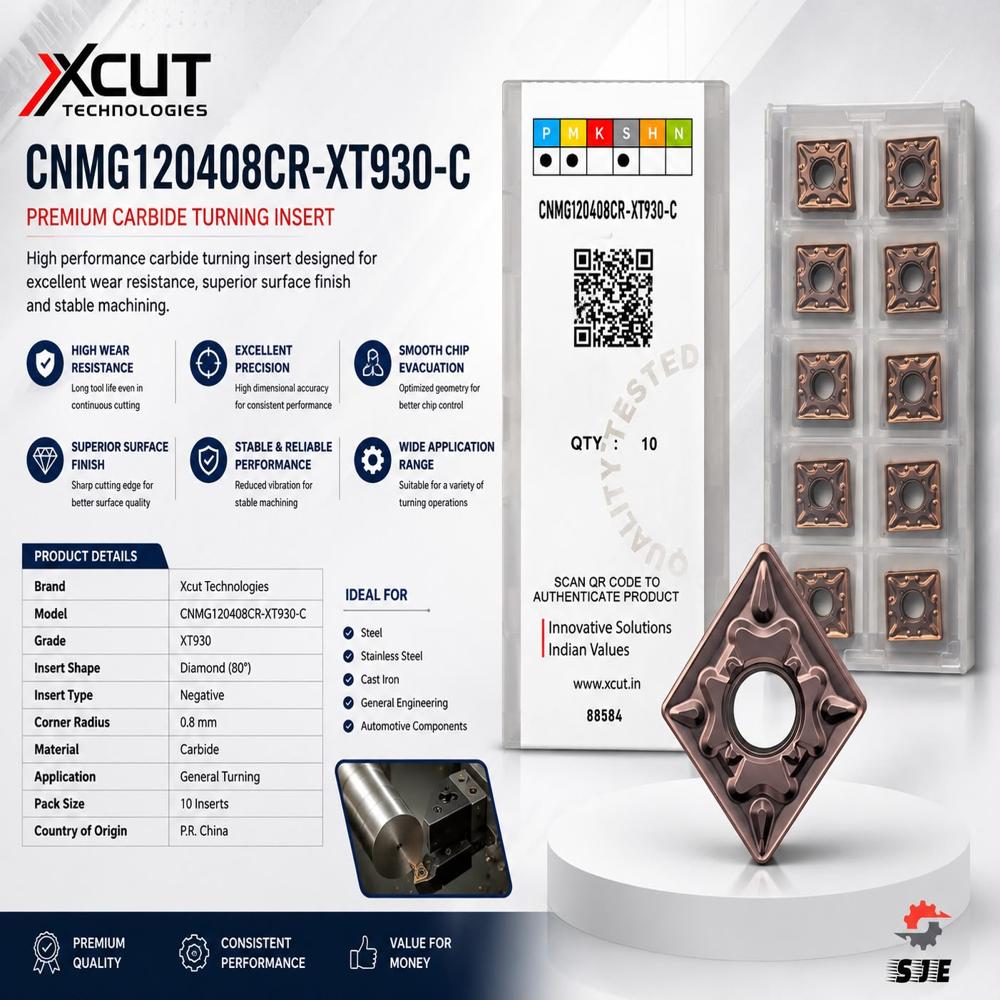

About Cnmg 120408
The CNMG120408CR XT930C is a premium 80 diamond-shaped negative carbide turning insert engineered for medium to rough turning operations. Manufactured in the XT930C grade, it provides outstanding wear resistance, toughness, and thermal stability for machining steel, stainless steel, cast iron, and alloy steels. The CR chipbreaker delivers excellent chip control, reduced cutting forces, and stable machining performance, making it ideal for CNC lathes and high-production environments.
Technical Specifications| Specification | Details |
|---|---|
| Product Type | Indexable Turning Insert |
| Model | CNMG120408CR XT930C |
| Material | Cemented Carbide |
| Grade | XT930C |
| Shape | 80 Diamond (Rhombic) |
| Insert Type | Negative, Double-Sided |
| Chipbreaker | CR |
| Hand | Neutral |
| Inscribed Circle (IC) | 12.7 mm |
| Cutting Edge Length | 12.9 mm |
| Thickness (S) | 4.76 mm |
| Corner Radius (RE) | 0.8 mm |
| Hole Diameter (D1) | 5.16 mm |
| Included Angle | 80 |
| Number of Cutting Edges | 8 |
| Mounting Style | Screw Clamp |
| Weight (1 Piece) | Approx. 9.8 g |
| Color | Gold/Bronze (CVD Coated) |
| Pack Size | Usually 10 Pieces |
Dimensions follow the ISO CNMG120408 standard, and the approximate weight is based on equivalent ISO CNMG120408 inserts.
Features- Premium cemented carbide substrate
- XT930C wear-resistant grade
- CVD-coated for extended tool life
- CR chipbreaker for efficient chip control
- Double-sided design with eight cutting edges
- Excellent wear and heat resistance
- High edge strength
- Stable machining in continuous and interrupted cuts
- Reduced cutting forces
- Suitable for dry and wet machining
- High productivity and dimensional accuracy
- External Turning
- Internal Turning
- Facing
- Rough Turning
- Semi-Finishing
- Profile Turning
- CNC Turning
- General Metal Machining
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Tool Steel
- Hardened Steel
- Longer tool life
- Excellent chip evacuation
- High wear resistance
- Consistent machining performance
- Lower tooling costs
- Superior surface finish
- High productivity
- Reliable performance in industrial machining
- Good corrosion resistance during storage
- Excellent oxidation resistance due to CVD coating
- High wear resistance in demanding machining conditions
- Suitable for coolant-assisted and dry machining
- CNMG120408CR XT930C
- CNMG120408 CR XT930C
- XT930C Carbide Insert
- CNMG120408 Carbide Insert
- CNMG Turning Insert
- Carbide Turning Insert
- CNC Turning Insert
- Indexable Turning Insert
- Diamond Turning Insert
- 80 Degree Turning Insert
- Negative Turning Insert
- CR Chipbreaker Insert
- Carbide Lathe Insert
- External Turning Insert
