Send InquiryAPMT 1604
Price 260.0 INR/ Piece
APMT 1604 Specification
- Shape
- Parallelogram
- Thickness
- 4.76 Millimeter (mm)
- Grade
- P/M/K/S/H/N
- Usage
- INDUSTRIAL
- Material
- carbide
- Product Type
- Indexable Milling Insert
- Application
- Face Milling, 90 Shoulder Milling ,Slot Milling ,Profile Milling, Pocket Milling ,CNC Milling, General Milling Semi-Finishing Finishing
- Weight
- 6 Grams (g)
- Color
- DEPENDS ON GRADE
APMT 1604 Trade Information
- Minimum Order Quantity
- 30 Pieces
- Delivery Time
- 5 Days
About APMT 1604

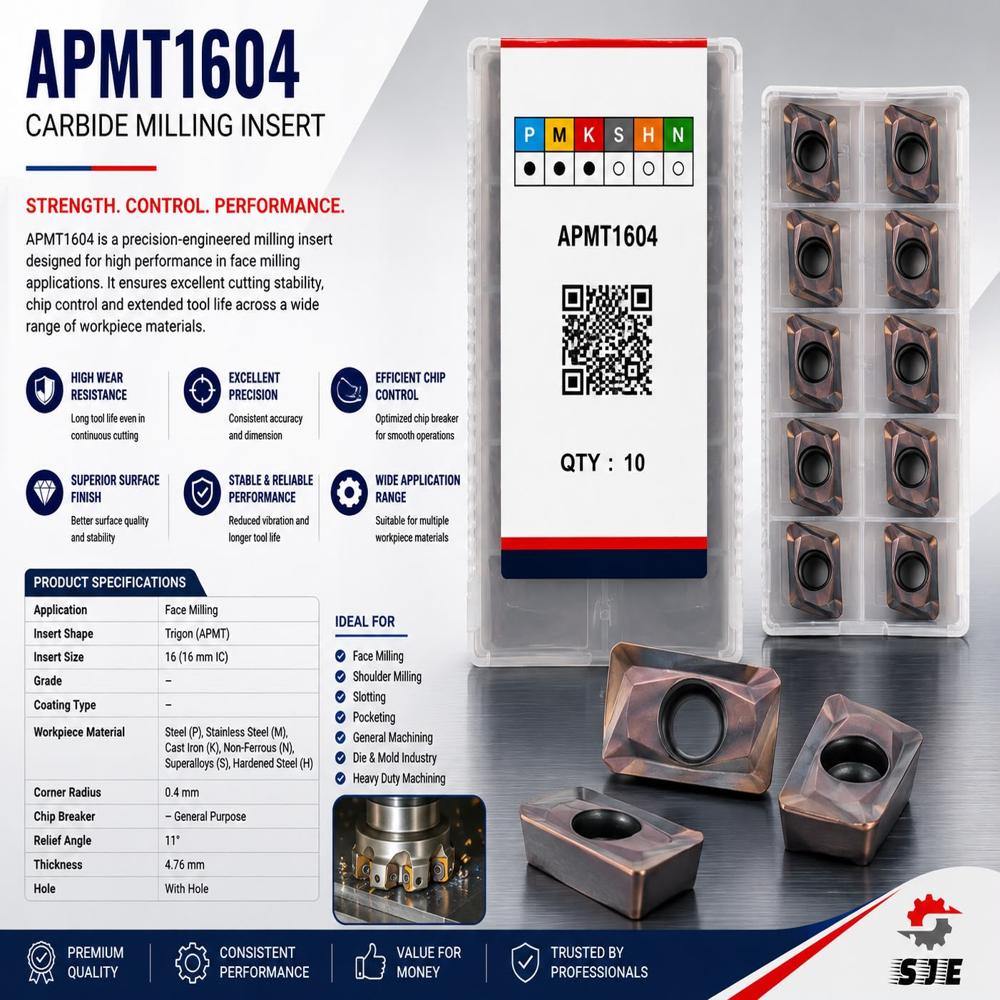

The APMT1604 is a high-performance positive rake carbide milling insert designed for 90 shoulder milling, face milling, slot milling, and profiling operations. It is widely used with BAP400R and other APMT1604-compatible milling cutters, delivering excellent chip control, reduced cutting forces, and superior surface finish. Suitable for CNC machining centers and conventional milling machines, it offers high productivity and long tool life across a wide range of materials.
Technical Specifications| Specification | Details |
|---|---|
| Product Type | Indexable Milling Insert |
| Model | APMT1604 |
| Material | Cemented Carbide |
| Shape | Parallelogram |
| Insert Type | Positive, Single-Sided |
| Clearance Angle | 11 |
| Length (L) | 16.517.19 mm |
| Width (W) | 9.525 mm |
| Thickness (S) | 4.76 mm |
| Corner Radius (RE) | 0.8 mm (varies by suffix) |
| Hole Diameter | 4.4 mm |
| Number of Cutting Edges | 2 |
| Mounting Style | Screw Clamp |
| Weight (1 Piece) | Approx. 6 g |
| Color | Grade Dependent |
| Pack Size | Usually 10 Pieces |
- Premium cemented carbide substrate
- Positive rake cutting geometry
- Excellent wear resistance
- Low cutting forces
- Superior chip evacuation
- High machining accuracy
- Excellent surface finish
- Long tool life
- Suitable for high-speed machining
- Compatible with BAP400R and other APMT1604 milling cutters
- Suitable for dry and coolant-assisted machining
- Stable performance in continuous cutting operations
- Face Milling
- 90 Shoulder Milling
- Slot Milling
- Profile Milling
- Pocket Milling
- CNC Milling
- General Milling
- Semi-Finishing
- Finishing
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Tool Steel
- Non-Ferrous Metals (grade dependent)
- Excellent chip control
- High metal removal rate
- Reduced machining time
- Improved surface finish
- Lower tooling costs
- Long insert life
- Stable machining performance
- High productivity
- Good corrosion resistance during storage
- Excellent wear resistance
- Coated grades provide enhanced oxidation and corrosion resistance
- Suitable for dry and coolant-assisted machining
- APMT1604
- APMT 1604
- APMT1604 Carbide Insert
- APMT Milling Insert
- Carbide Milling Insert
- Indexable Milling Insert
- Face Milling Insert
- Shoulder Milling Insert
- 90 Degree Milling Insert
- Positive Milling Insert
- CNC Milling Insert
- BAP400R Insert
- Parallelogram Carbide Insert
- Carbide Cutter Insert
- Steel Milling Insert
- Stainless Steel Milling Insert
- Cast Iron Milling Insert
- Precision Milling Insert
- Wear Resistant Carbide Insert
- Industrial Milling Insert
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
