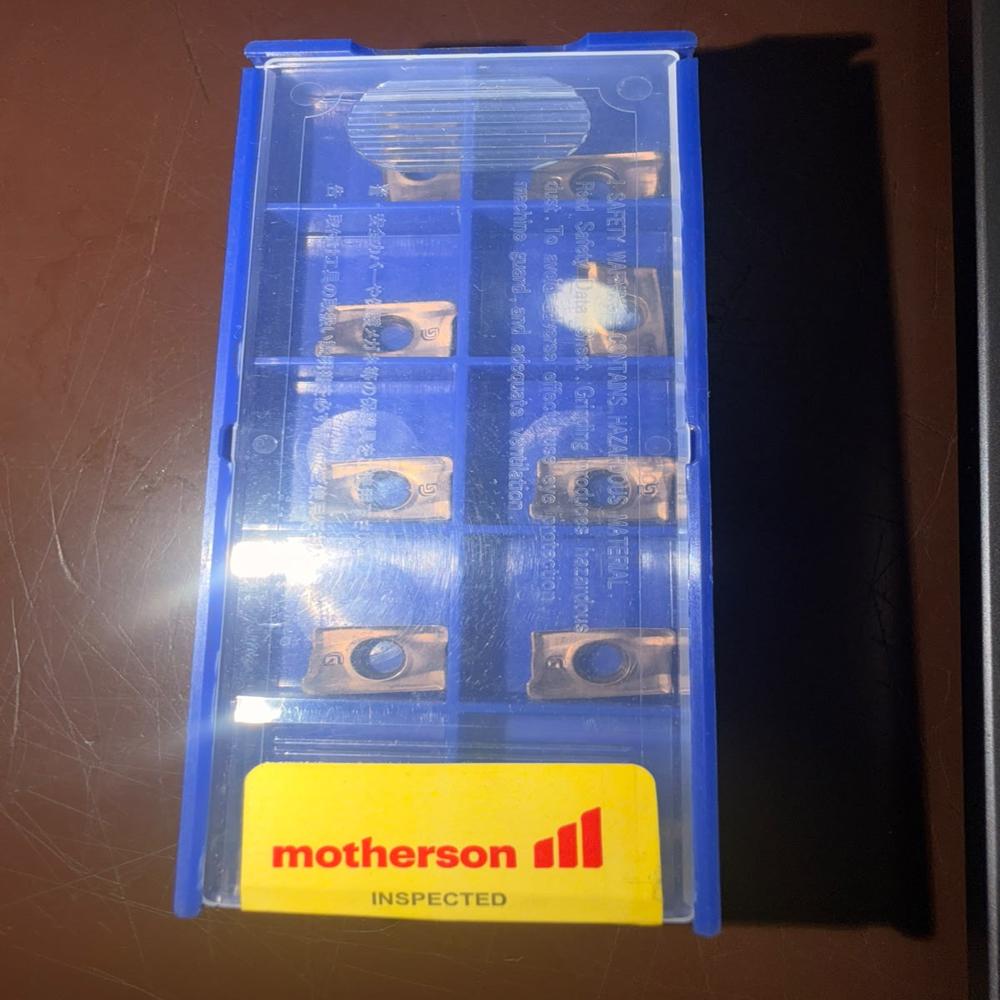

AXMT123508PEER-G ACP200 Carbide Milling Insert

AXMT123508PEER-G ACP200 Carbide Milling Insert Specification

Grade
ACP200

Thickness
3.5 Millimeter (mm)

Shape
Parallelogram (85 )

Usage
INDUSTRIAL

Material
Tungsten, carbide

Size
12 mm

Product Type
MILLING INSERT

Application
Face Milling, Shoulder Milling, CNC Milling

Weight
4.5 g Grams (g)

Color
BRONZE

About AXMT123508PEER-G ACP200 Carbide Milling Insert

The AXMT123508PEER-G ACP200 is a premium parallelogram positive carbide milling insert from Sumitomo Electric, designed for high-speed face milling and shoulder milling. Featuring the G chipbreaker and ACP200 PVD-coated grade, it delivers excellent wear resistance, smooth chip evacuation, and long tool life. It is ideal for CNC machining of steel and stainless steel.

Technical Specifications

Specification	Details
Brand	Sumitomo Electric
Model	AXMT123508PEER-G ACP200
Product Type	Indexable Milling Insert
Material	Cemented Carbide
Grade	ACP200
Coating	PVD (TiAlN + AlCrN)
Shape	Parallelogram (85)
Insert Type	Positive
Chipbreaker	G
Insert Size	12 mm
Workpiece Material	Steel, Stainless Steel
ISO Application	P, M
ISO Tolerance	M
Insert Clearance	11
Cutting Edge Length	12.0 mm
Thickness (S)	3.5 mm
Corner Radius (RE)	0.8 mm
Maximum Depth of Cut	10 mm
Number of Cutting Edges	2
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 4.5 g
Pack Size	Usually 10 Pieces
Application	Face Milling, Shoulder Milling, CNC Milling

Specifications are based on the standard AXMT123508PEER-G ACP200 insert geometry.

Features

Premium cemented carbide
ACP200 PVD coating
G chipbreaker
Excellent wear resistance
Smooth chip control
Long tool life
Stable machining performance
High machining accuracy

Applications

Face Milling
Shoulder Milling
CNC Milling
Roughing
Semi-Finishing

Suitable Materials

Carbon Steel
Alloy Steel
Stainless Steel

Corrosion Resistance

Good corrosion resistance
Excellent oxidation resistance
High wear resistance
Suitable for dry and wet machining
