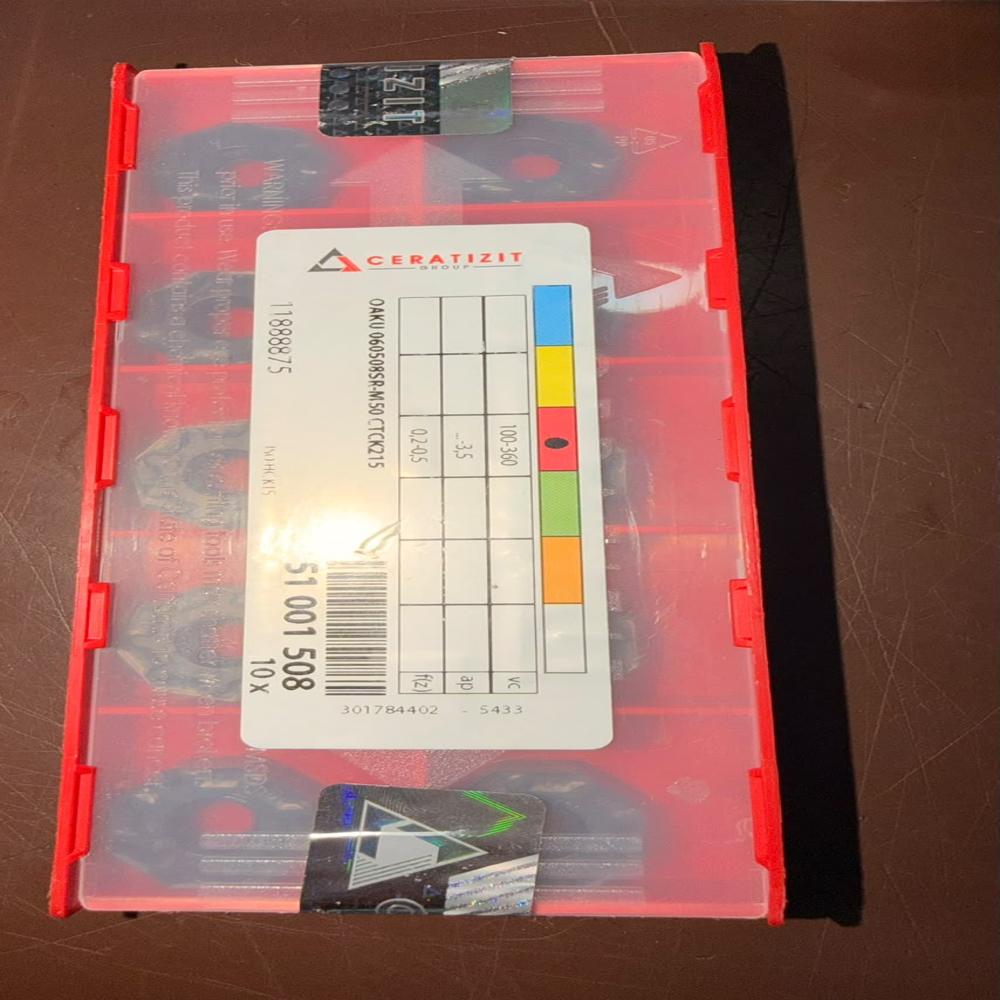

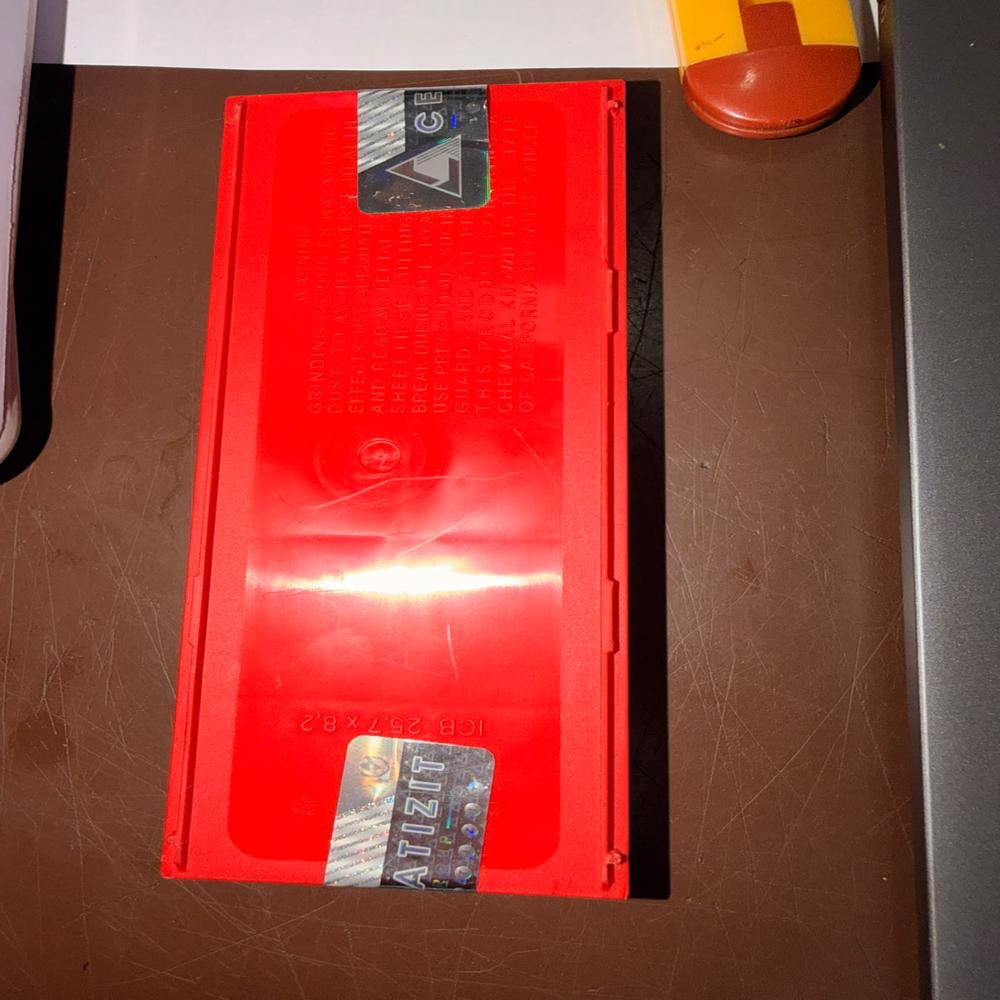

OAKU060508SR-M50 CTCK125 Carbide Milling Insert

OAKU060508SR-M50 CTCK125 Carbide Milling Insert Specification

Corrosion Resistant
CVD Coated

Grade
CTCK215

Shape
OCTAGON

Thickness
6 Millimeter (mm)

Usage
INDUSTRIAL

Material
Tungsten, carbide

Size
6

Product Type
MILLING INSERT

Application
Face Milling, CNC Milling, Roughing, Semi-Finishing

Color
BLACK

OAKU060508SR-M50 CTCK125 Carbide Milling Insert Trade Information

Minimum Order Quantity
30 Pieces

Delivery Time
5 Days

About OAKU060508SR-M50 CTCK125 Carbide Milling Insert

The OAKU060508SR-M50 CTCK125 is a premium octagonal negative carbide milling insert designed for high-performance face milling applications. Featuring the M50 chipbreaker and CTCK125 grade, it provides excellent wear resistance, stable cutting performance, and long tool life. With 16 usable cutting edges, it offers exceptional economy and productivity for CNC machining of cast iron and steel.

Technical Specifications

Specification	Details
Brand	Ceratizit
Model	OAKU060508SR-M50 CTCK125
Product Type	Indexable Milling Insert
Material	Cemented Carbide
Grade	CTCK125
Coating	CVD Coated
Shape	Octagon
Insert Type	Negative
Chipbreaker	M50
Insert Size	06
Workpiece Material	Cast Iron, Steel
ISO Application	K, P
ISO Tolerance	K
Insert Clearance	3
Inscribed Circle (IC)	17.1 mm
Thickness (S)	5.66 mm
Corner Radius (RE)	0.8 mm
Hole Diameter (D1)	5.8 mm
Cutting Edge Length	6.0 mm
Number of Cutting Edges	16
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 18 g
Pack Size	Usually 10 Pieces
Application	Face Milling, CNC Milling, Roughing, Semi-Finishing

Dimensions are based on the standard OAKU060508SR-M50 insert geometry. Weight is approximate and may vary slightly by grade.

Features

Premium cemented carbide
CTCK125 CVD coating
M50 chipbreaker
16 usable cutting edges
Excellent wear resistance
Smooth chip control
Long tool life
Stable machining performance

Applications

Face Milling
CNC Milling
Rough Milling
Semi-Finishing

Suitable Materials

Cast Iron
Ductile Cast Iron
Carbon Steel
Alloy Steel

Corrosion Resistance

Good corrosion resistance
Excellent oxidation resistance
High wear resistance
Suitable for dry and wet machining
