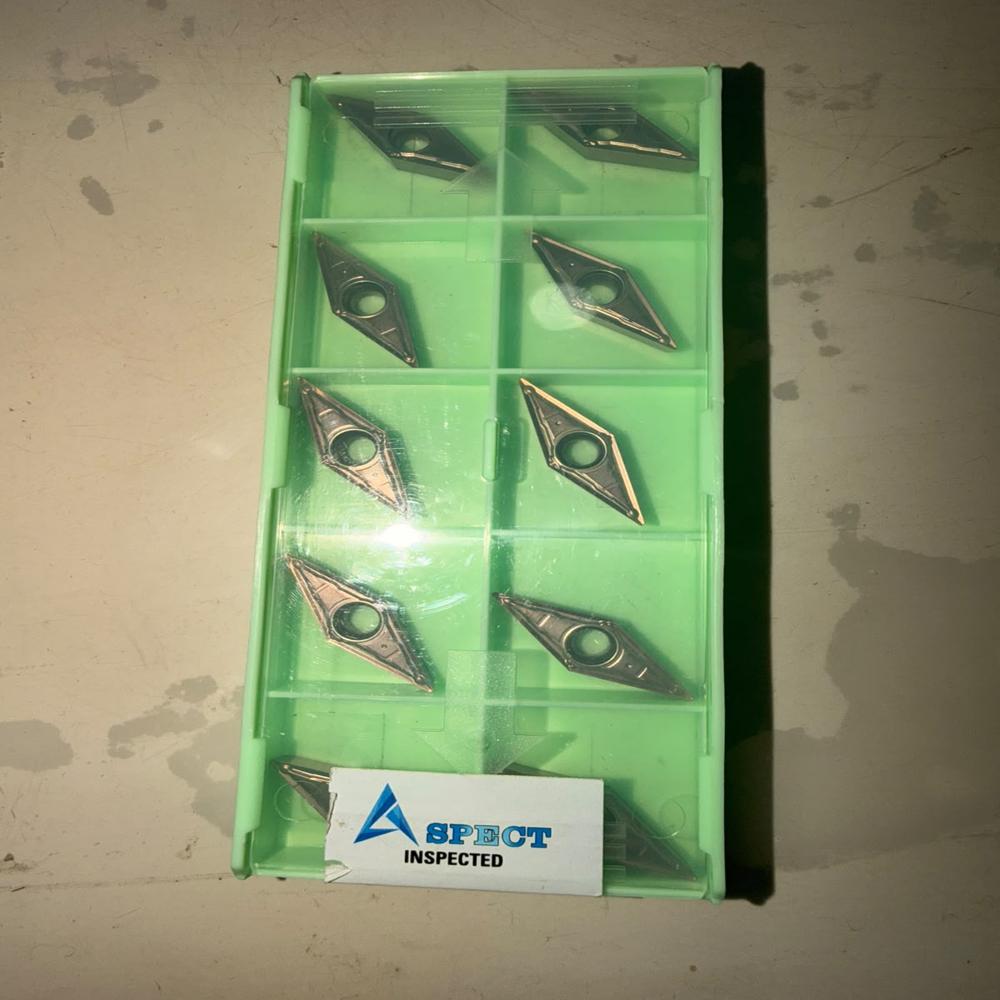

Name: VBMT160408 ZC AP5015
Brand: SHREE JAGDISH ENTERPRISES
Price: 450.0 INR
Availability: InStock

VBMT160408 ZC AP5015 Specification

Grade
AP5015

Thickness
4.76 Millimeter (mm)

Shape
35 Diamond (Rhombic)

Usage
INDUSRIAL

Material
Tungsten, carbide

Product Type
TURNING INSERT

Application
External Turning Internal Turning Finish Turning Semi-Finishing Profile Turning Facing CNC Turning Precision Machining

Color
GOLDEN

VBMT160408 ZC AP5015 Trade Information

Minimum Order Quantity
30 Pieces

Delivery Time
5 Days

About VBMT160408 ZC AP5015

The VBMT160408 ZC AP5015 is a premium 35 diamond-shaped positive carbide turning insert from Mitsubishi Materials, engineered for precision finishing and semi-finishing operations. Featuring the AP5015 PVD-coated grade and ZC chipbreaker, it offers excellent wear resistance, low cutting forces, superior chip control, and outstanding surface finish. It is ideal for CNC lathes and conventional turning machines machining steel, alloy steel, stainless steel, and cast iron.

Technical Specifications

Specification	Details
Brand	Mitsubishi Materials
Model	VBMT160408 ZC AP5015
Product Type	Indexable Turning Insert
Material	Cemented Carbide
Grade	AP5015
Coating	PVD Coated
Shape	35 Diamond (Rhombic)
Insert Type	Positive, Single-Sided
Chipbreaker	ZC
Clearance Angle	5
ISO Tolerance	M
Inscribed Circle (IC)	9.525 mm
Cutting Edge Length (L)	16.6 mm
Thickness (S)	4.76 mm
Corner Radius (RE)	0.8 mm
Hole Diameter (D1)	4.4 mm
Included Angle	35
Number of Cutting Edges	2
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 5.5 g
Color	Bronze/Gold (PVD Coated)
Pack Size	Usually 10 Pieces

Dimensions conform to the ISO VBMT160408 standard.

Features

Premium cemented carbide substrate
AP5015 PVD-coated grade
ZC chipbreaker for smooth chip control
Positive cutting geometry
Excellent wear resistance
High heat resistance
Low cutting forces
Superior surface finish
High dimensional accuracy
Long tool life
Stable machining performance
Suitable for dry and coolant-assisted machining

Applications

External Turning
Internal Turning
Finish Turning
Semi-Finishing
Profile Turning
Facing
CNC Turning
Precision Machining

Suitable Materials

Carbon Steel
Alloy Steel
Stainless Steel
Cast Iron
Non-Ferrous Metals

Advantages

Excellent chip evacuation
High wear resistance
Superior surface finish
Extended tool life
Reduced tooling costs
Stable cutting performance
High machining accuracy
Increased productivity

Corrosion Resistance

Good corrosion resistance during storage
Excellent oxidation resistance due to PVD coating
High wear resistance in continuous machining
Suitable for dry and coolant-assisted machining

Quick Specifications

Specification	Details
Insert Size	16 mm
Workpiece Material	Steel, Alloy Steel, Stainless Steel, Cast Iron, Non-Ferrous Metals
ISO Tolerance	M
Insert Clearance	5
Application	External Turning, Internal Turning, Finish Turning, Semi-Finishing, Profile Turning, Facing, CNC Precision Machining
