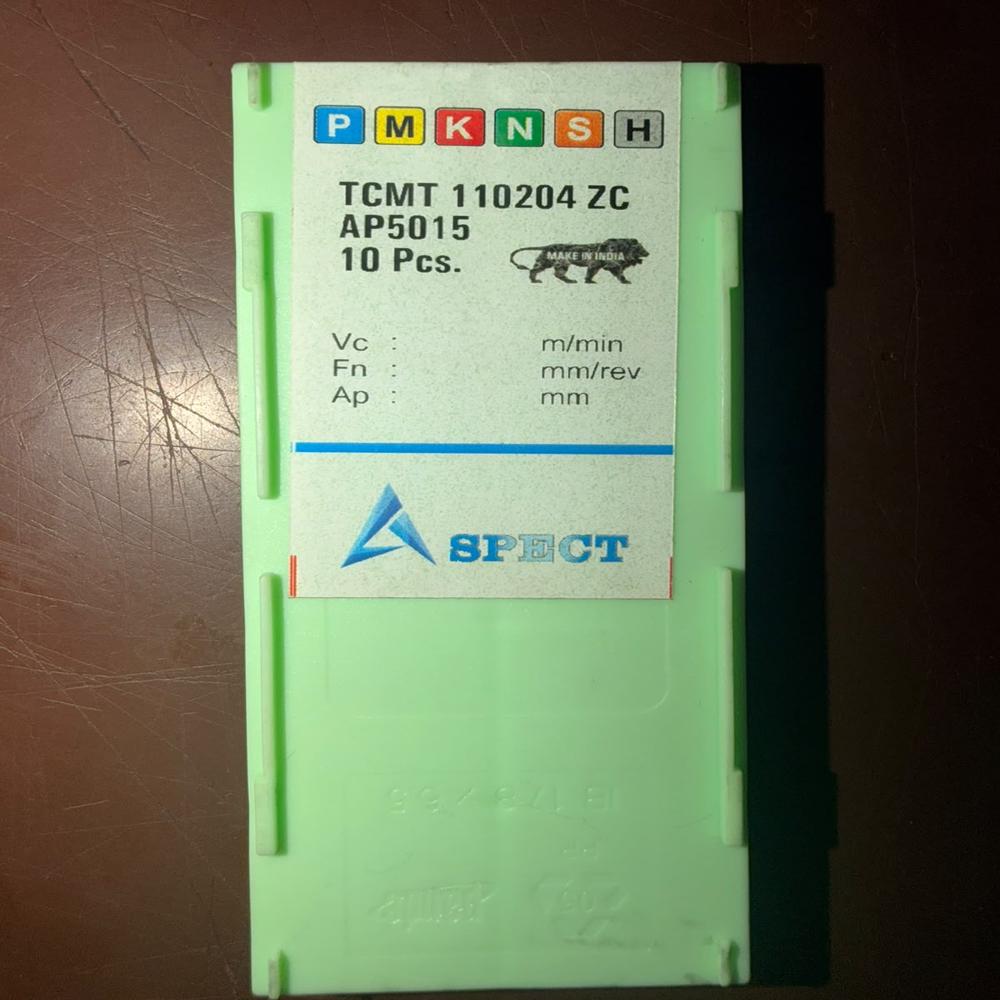

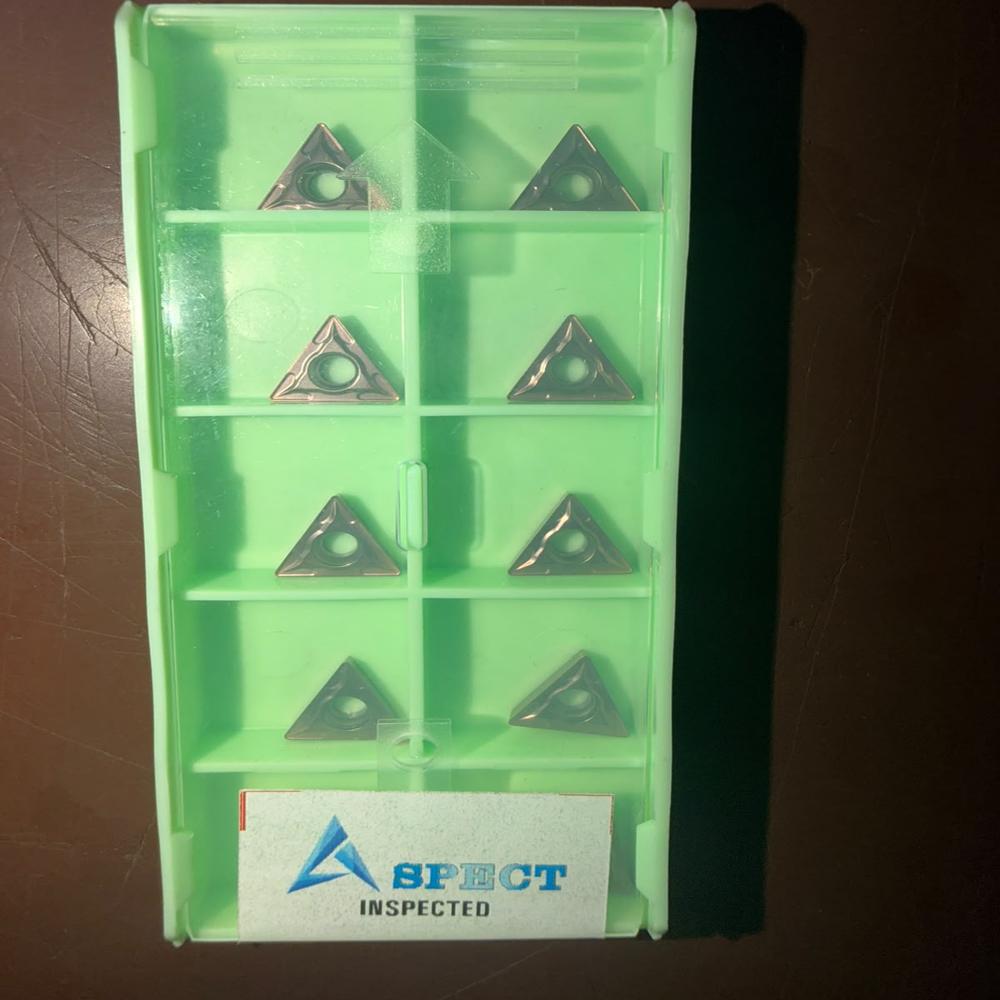

Name: TCMT110204 ZC AP5015 Carbide Turning Insert
Brand: SHREE JAGDISH ENTERPRISES
Price: 500.0 INR
Availability: InStock

TCMT110204 ZC AP5015 Carbide Turning Insert Specification

Grade
AP5015

Shape
TRIANGLE

Corrosion Resistant
PVD Coated

Usage
INDUSTRIAL

Material
Tungsten, carbide

Size
12

Product Type
TURNING INSERT

Application
External Turning, Internal Turning, Facing, Finish Turning, Light Machining Features Premium cemented carbide AP5015 PVD coating ZC chipbreaker Excellent wear resistance Smooth chip control Long tool life High machining accuracy Stable cutting performance Applications External Turning Internal Turning Facing Finish Turning Light Turning CNC Turning Suitable Materials Carbon Steel Alloy Steel Stainless Steel Cast Iron Corrosion Resistance Good corrosion resistance Excellent oxidation resistance High wear resistance Suitable for dry and coolant machining SEO Keywords TCMT110204 ZC AP5015, TCMT110204 ZC, TCMT110204 AP5015, TCMT110204 Carbide Insert, Mitsubishi TCMT Insert, Triangle Turning Insert, Positive Turning Insert, Carbide Turning Insert, CNC Turning Insert, Steel Turning Insert, Stainless Steel Turning Insert, Cast Iron Turning Insert, Finish Turning Insert, Indexable Turning Insert, Industrial Carbide Insert.

Color
BLACK

TCMT110204 ZC AP5015 Carbide Turning Insert Trade Information

Minimum Order Quantity
30 Pieces

Delivery Time
5 Days

TCMT110204 ZC AP5015 Carbide Turning Insert About

The TCMT110204 ZC AP5015 is a premium triangular positive carbide turning insert from Mitsubishi Materials, designed for precision finishing and light turning operations. Featuring the ZC chipbreaker and AP5015 PVD-coated grade, it provides excellent wear resistance, smooth chip control, and long tool life. It is ideal for CNC machining of steel, stainless steel, and cast iron.

Technical Specifications

Specification	Details
Brand	Mitsubishi Materials
Model	TCMT110204 ZC AP5015
Product Type	Indexable Turning Insert
Material	Cemented Carbide
Grade	AP5015
Coating	PVD Coated
Shape	Triangle (60)
Insert Type	Positive
Chipbreaker	ZC
Insert Size	11 mm
Workpiece Material	Steel, Stainless Steel, Cast Iron
ISO Application	P, M, K
ISO Tolerance	M
Insert Clearance	7
Inscribed Circle (IC)	6.35 mm
Cutting Edge Length	11 mm
Thickness (S)	2.38 mm
Corner Radius (RE)	0.4 mm
Hole Diameter (D1)	2.8 mm
Number of Cutting Edges	3
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 1.5 g
Pack Size	Usually 10 Pieces
Application	External Turning, Internal Turning, Facing, Finish Turning, Light Machining

Features

Premium cemented carbide
AP5015 PVD coating
ZC chipbreaker
Excellent wear resistance
Smooth chip control
Long tool life
High machining accuracy
Stable cutting performance

Applications

External Turning
Internal Turning
Facing
Finish Turning
Light Turning
CNC Turning

Suitable Materials

Carbon Steel
Alloy Steel
Stainless Steel
Cast Iron

Corrosion Resistance

Good corrosion resistance
Excellent oxidation resistance
High wear resistance
Suitable for dry and coolant machining

SEO Keywords

TCMT110204 ZC AP5015, TCMT110204 ZC, TCMT110204 AP5015, TCMT110204 Carbide Insert, Mitsubishi TCMT Insert, Triangle Turning Insert, Positive Turning Insert, Carbide Turning Insert, CNC Turning Insert, Steel Turning Insert, Stainless Steel Turning Insert, Cast Iron Turning Insert, Finish Turning Insert, Indexable Turning Insert, Industrial Carbide Insert.
