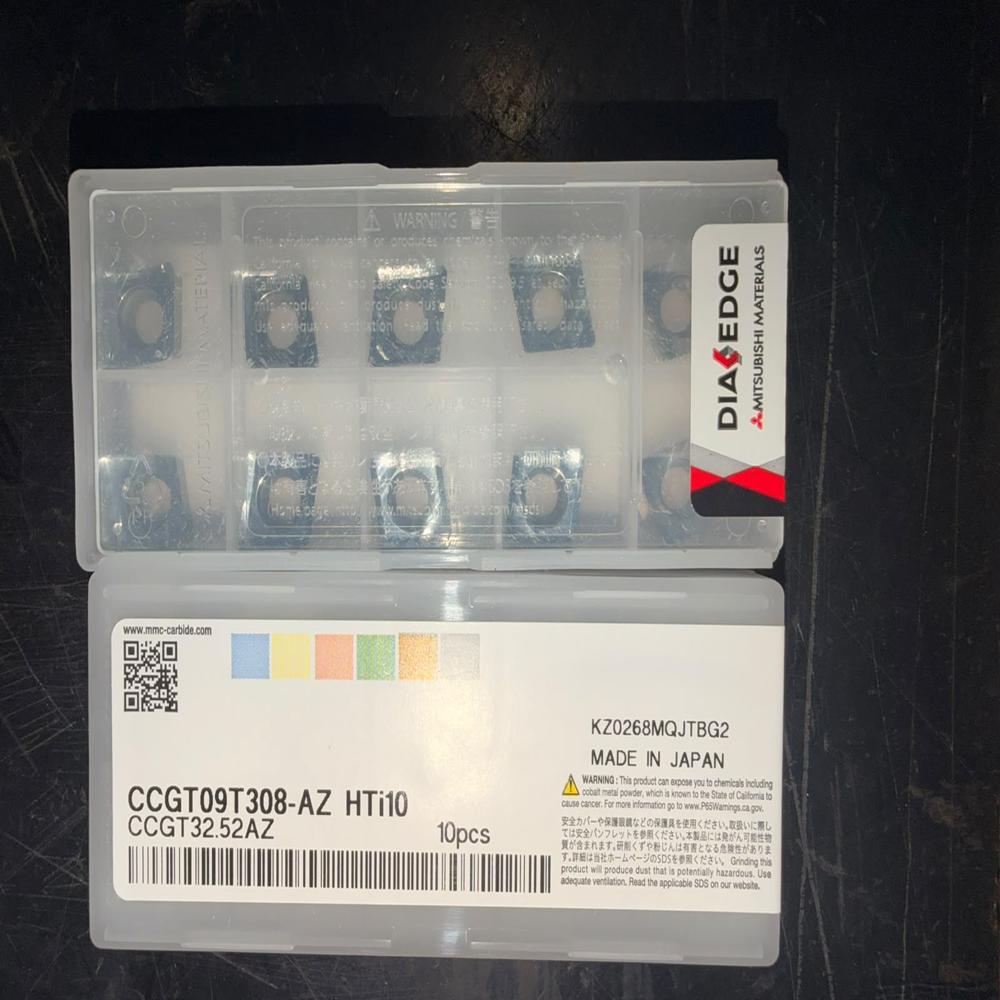

CCGT09T308-AZ HTI10 Carbide Turning Insert

CCGT09T308-AZ HTI10 Carbide Turning Insert Specification

Grade
HTi10

Shape
80 Diamond (Rhombic)

Usage
INDUSTRIAL

Material
carbide, Tungsten

Size
9

Product Type
TURNING INSERT

Application
External Turning, Internal Turning, Facing, Finish Turning, Semi-Finishing

Color
BLACK

CCGT09T308-AZ HTI10 Carbide Turning Insert Trade Information

Minimum Order Quantity
30 Pieces

Delivery Time
5 Days

About CCGT09T308-AZ HTI10 Carbide Turning Insert

The CCGT09T308-AZ HTI10 is a premium 80 diamond positive carbide turning insert from Mitsubishi Materials, designed for high-precision finishing and semi-finishing of non-ferrous materials. Featuring the AZ polished chipbreaker and HTI10 uncoated carbide grade, it delivers excellent sharpness, smooth chip evacuation, and superior surface finish. It is ideal for CNC turning of aluminum, copper, brass, and plastics.

Technical Specifications

Specification	Details
Brand	Mitsubishi Materials
Model	CCGT09T308-AZ HTI10
Product Type	Indexable Turning Insert
Material	Cemented Carbide
Grade	HTI10
Coating	Uncoated
Shape	80 Diamond (Rhombic)
Insert Type	Positive
Chipbreaker	AZ
Insert Size	09
Workpiece Material	Aluminum, Copper, Brass, Plastic, Non-Ferrous Metals
ISO Application	N
ISO Tolerance	G
Insert Clearance	7
Inscribed Circle (IC)	9.525 mm
Cutting Edge Length	9.67 mm
Thickness (S)	3.97 mm
Corner Radius (RE)	0.8 mm
Hole Diameter (D1)	4.4 mm
Number of Cutting Edges	2
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 3.5 g
Pack Size	Usually 10 Pieces
Application	External Turning, Internal Turning, Facing, Finish Turning, Semi-Finishing

Features

Premium cemented carbide
HTI10 uncoated grade
AZ polished chipbreaker
Razor-sharp cutting edge
Excellent surface finish
Superior chip control
Long tool life
Ideal for non-ferrous machining

Applications

External Turning
Internal Turning
Facing
Finish Turning
Semi-Finishing
CNC Turning

Suitable Materials

Aluminum
Copper
Brass
Bronze
Plastics
Non-Ferrous Metals

Corrosion Resistance

Good corrosion resistance
Excellent oxidation resistance
High wear resistance
Suitable for dry and coolant machining
