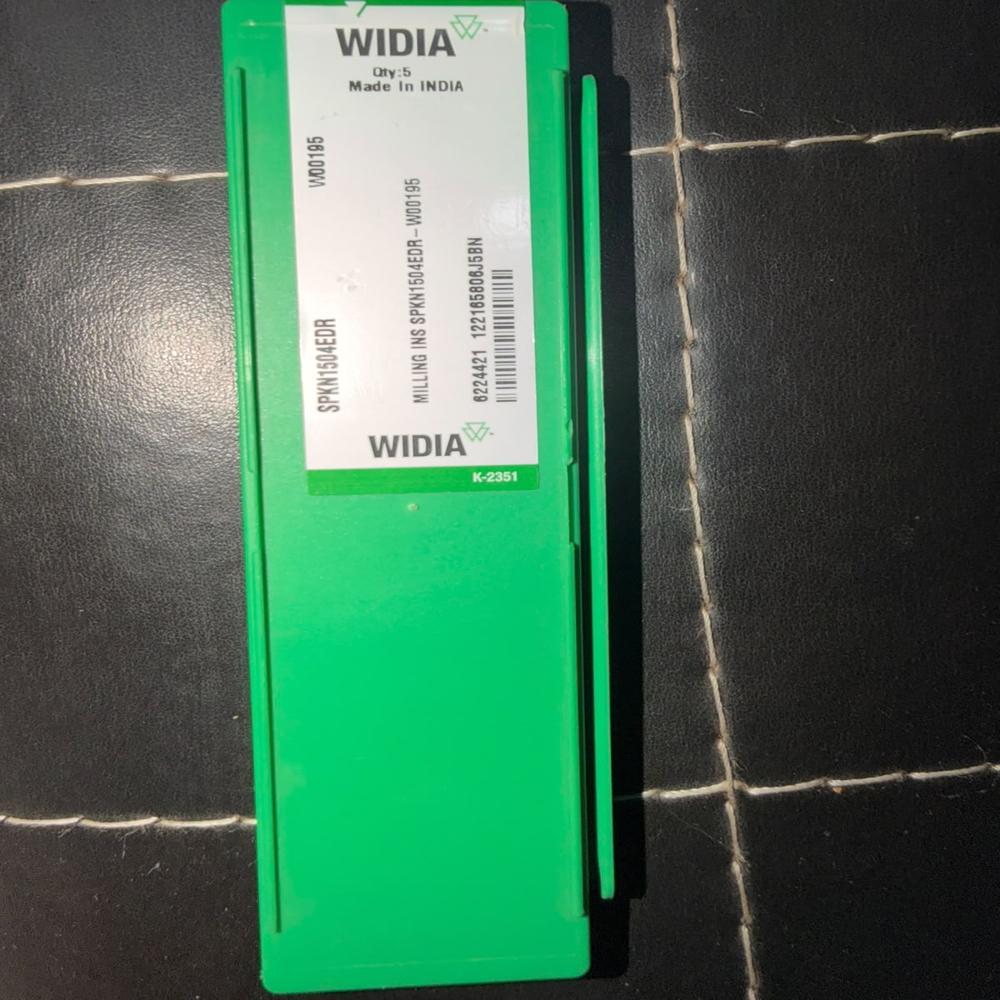

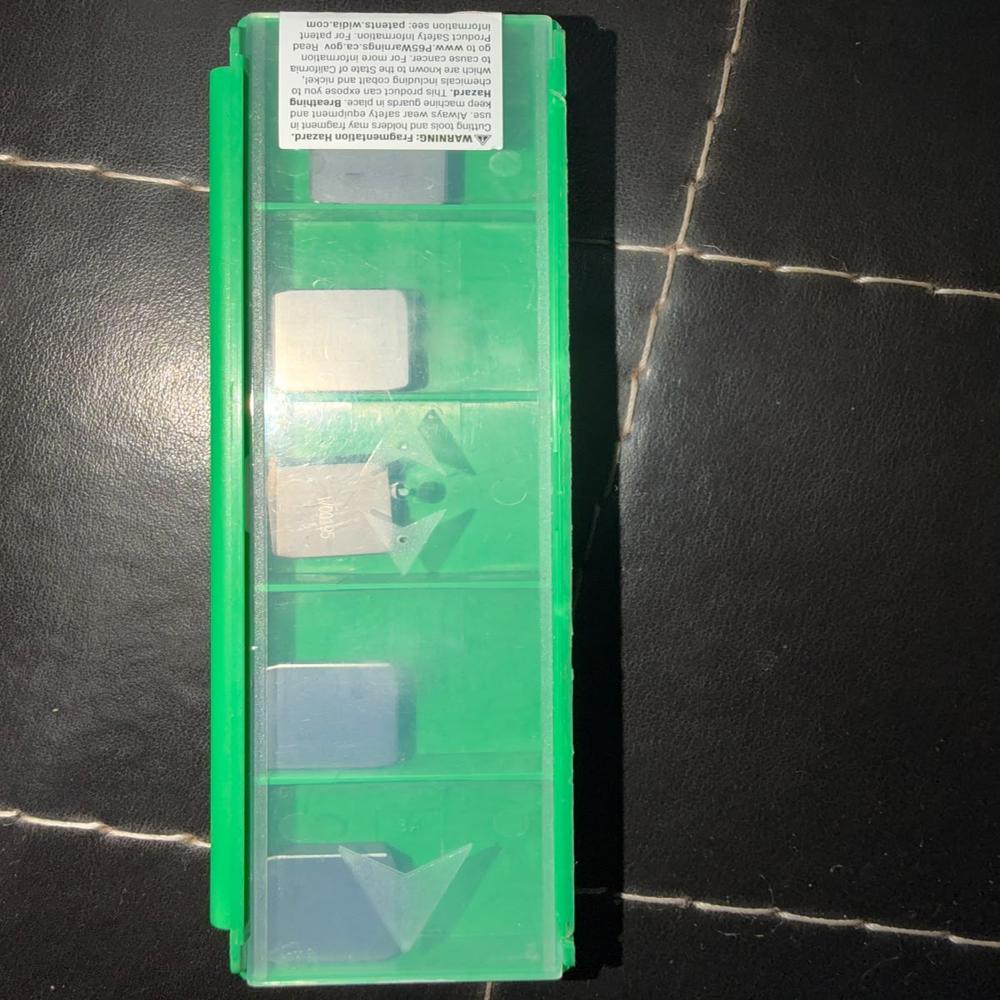

About SPKN1504 EDR

The SPKN1504EDR is a high-performance square carbide milling insert designed for face milling and shoulder milling operations. Its positive cutting geometry provides smooth cutting action, excellent chip control, and long tool life. The insert is suitable for CNC machining of steel, stainless steel, and cast iron and is compatible with standard SPKN1504 milling cutter bodies.

Technical Specifications

Specification	Details
Model	SPKN1504EDR
Product Type	Indexable Milling Insert
Material	Cemented Carbide
Shape	Square
Insert Type	Positive
Insert Size	15 mm
Workpiece Material	Steel, Stainless Steel, Cast Iron
ISO Application	P, M, K
ISO Tolerance	K
Insert Clearance	11
Cutting Edge Length	15.88 mm
Inscribed Circle (IC)	15.88 mm
Thickness (S)	4.76 mm
Corner Chamfer Width	0.93 mm
Number of Cutting Edges	4
Mounting Style	Without Hole
Weight (1 Piece)	Approx. 15 g
Pack Size	Usually 10 Pieces
Application	Face Milling, Shoulder Milling, CNC Milling

Features

Premium carbide substrate
Positive cutting geometry
Excellent wear resistance
Smooth chip control
Long tool life
Stable machining performance
High metal removal capability
Suitable for dry and wet machining

Applications

Face Milling
Shoulder Milling
CNC Milling
Roughing
Semi-Finishing

Suitable Materials

Carbon Steel
Alloy Steel
Stainless Steel
Cast Iron

Corrosion Resistance

Good corrosion resistance during storage
High wear and oxidation resistance
Suitable for dry and coolant machining
