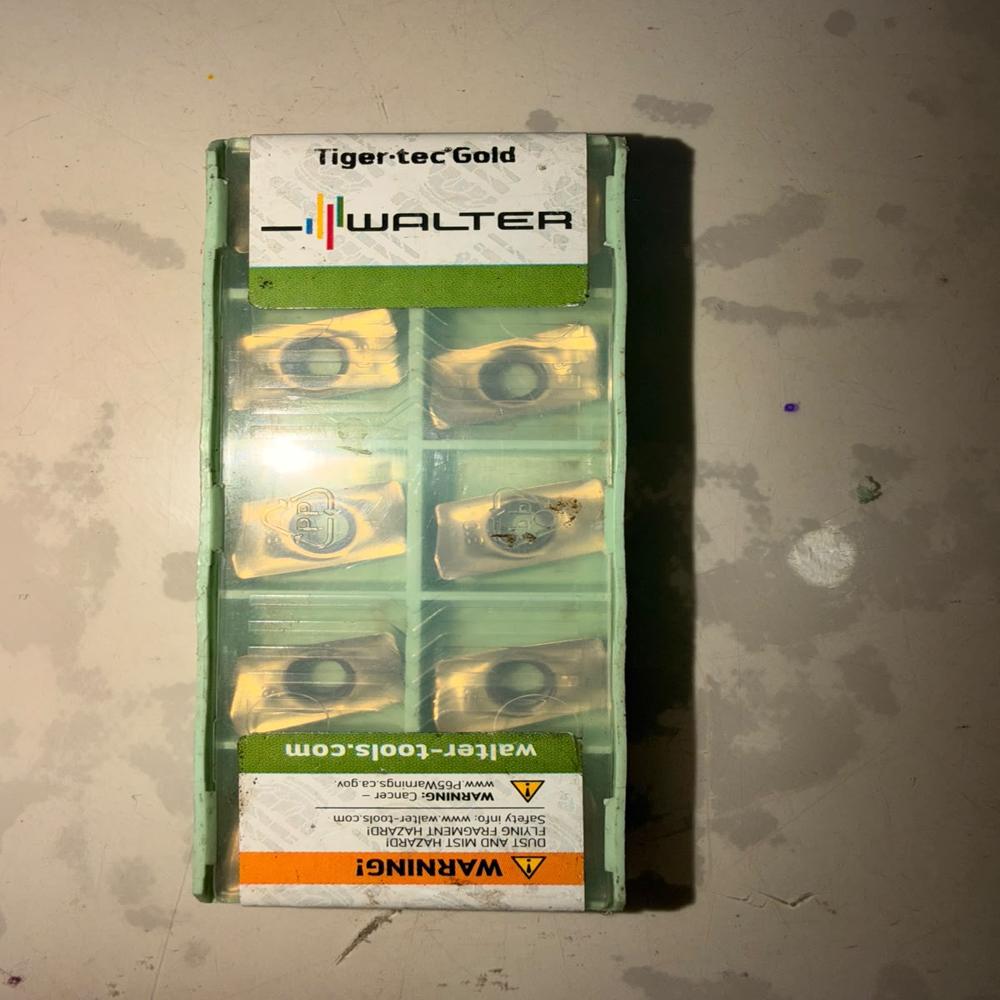

ADMT160608R-F56 WSP45G

ADMT160608R-F56 WSP45G Specification

Thickness
6.15 Millimeter (mm)

Shape
Rhombic

Corrosion Resistant
PVD/CVD Multi-Layer

Grade
WSP45G

Usage
INDUSTRIAL

Material
carbide, Tungsten

Product Type
MILLING INSERT

Application
Face Milling, Shoulder Milling, CNC Milling

Color
GOLDEN

ADMT160608R-F56 WSP45G Trade Information

Minimum Order Quantity
30 Pieces

Delivery Time
5 Days

About ADMT160608R-F56 WSP45G

The ADMT160608R-F56 WSP45G is a premium positive rhombic carbide milling insert from Walter, designed for face milling and shoulder milling. Featuring the F56 chipbreaker and WSP45G Tigertec Gold grade, it provides excellent wear resistance, smooth chip evacuation, and long tool life. It is ideal for machining steel, stainless steel, and heat-resistant alloys.

Technical Specifications

Specification	Details
Brand	Walter
Model	ADMT160608R-F56 WSP45G
Product Type	Indexable Milling Insert
Material	Cemented Carbide
Grade	WSP45G
Coating	Tigertec Gold (PVD/CVD Multi-Layer)
Shape	Rhombic
Insert Type	Positive
Chipbreaker	F56
Insert Size	16 mm
Workpiece Material	Steel, Stainless Steel, Heat-Resistant Alloys
ISO Tolerance	M
Insert Clearance	15
Cutting Edge Length (L)	17.5 mm
Width (W)	10.8 mm
Thickness (S)	6.15 mm
Corner Radius (RE)	0.8 mm
Number of Cutting Edges	2
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 79 g
Pack Size	Usually 10 Pieces
Application	Face Milling, Shoulder Milling, CNC Milling

Features

Premium carbide substrate
WSP45G Tigertec Gold coating
F56 chipbreaker
Excellent wear resistance
Superior chip control
Long tool life
High machining accuracy
Suitable for dry and wet machining

Applications

Face Milling
Shoulder Milling
CNC Milling
Roughing
Semi-Finishing

Suitable Materials

Carbon Steel
Stainless Steel
Heat-Resistant Alloys

Corrosion Resistance

Excellent oxidation resistance
High wear resistance
Suitable for dry and coolant machining
Good corrosion resistance during storage
