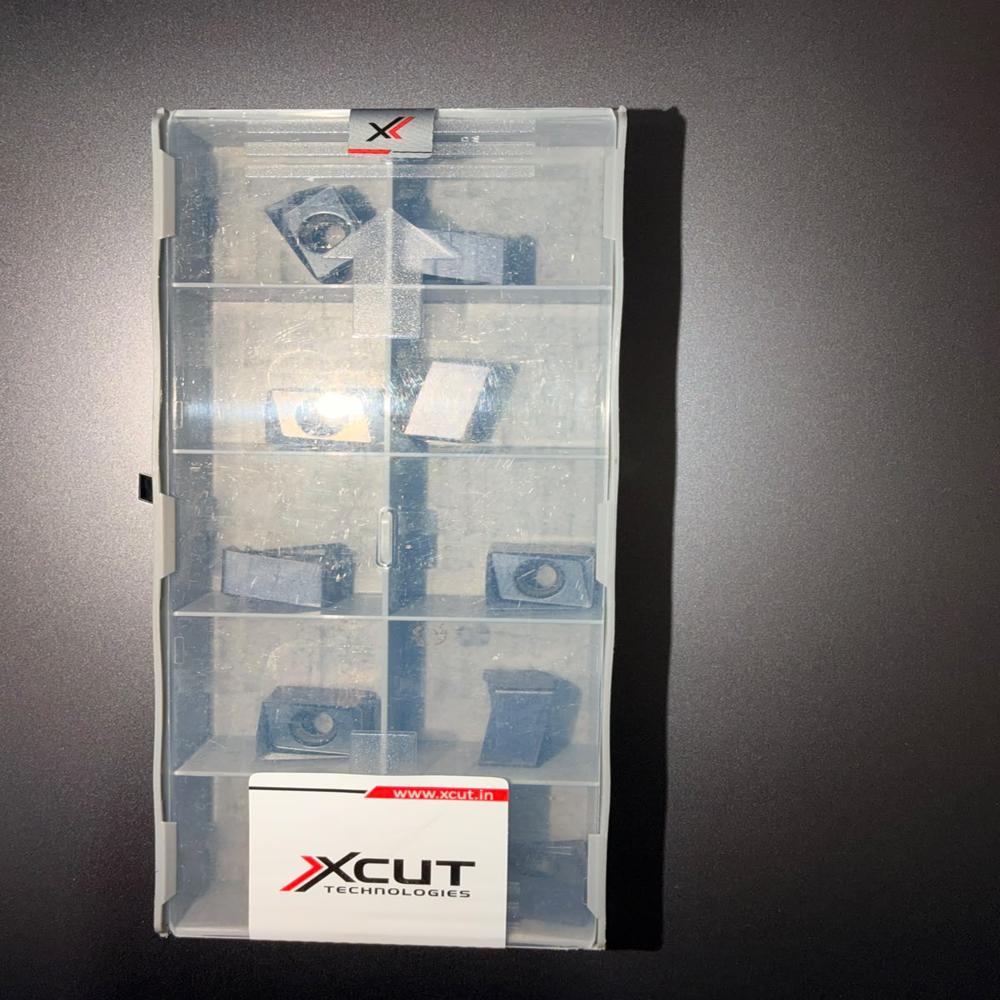

Name: LNKX120508-XT480 Carbide Milling Insert
Brand: SHREE JAGDISH ENTERPRISES
Price: 450.0 INR
Availability: InStock

LNKX120508-XT480 Carbide Milling Insert Specification

Corrosion Resistant
PVD COATED

Thickness
7.1 Millimeter (mm)

Grade
XT480

Usage
INDUSTRIAL

Material
Tungsten, carbide

Size
12mm

Product Type
MILLING INSERT

Application
90 Shoulder Milling, Face Milling, CNC Milling

Color
BLACK

LNKX120508-XT480 Carbide Milling Insert Trade Information

Minimum Order Quantity
30 Pieces

Delivery Time
5 Days

LNKX120508-XT480 Carbide Milling Insert About

The LNKX120508-XT480 is a high-performance rectangular positive carbide milling insert designed for 90 shoulder milling, face milling, and CNC machining. Featuring the XT480 universal grade, it offers excellent wear resistance, smooth cutting action, and long tool life. The insert is suitable for machining steel, stainless steel, cast iron, and non-ferrous materials, making it an excellent choice for general-purpose milling. It is compatible with LNKX120508 cutter bodies.

Technical Specifications

Specification	Details
Model	LNKX120508-XT480
Product Type	Indexable Milling Insert
Material	Cemented Carbide
Grade	XT480
Coating	PVD Coated
Shape	Rectangle
Insert Type	Positive
Insert Size	12 mm
Workpiece Material	Steel, Stainless Steel, Cast Iron, Non-Ferrous Metals
ISO Application	P, M, K, N
ISO Tolerance	M
Insert Clearance	0
Cutting Edge Length	12 mm
Inscribed Circle (IC)	9.5 mm
Thickness (S)	7.1 mm
Corner Radius (RE)	0.8 mm
Hole Diameter (D1)	4.5 mm
Number of Cutting Edges	4
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 7 g
Pack Size	Usually 10 Pieces
Application	90 Shoulder Milling, Face Milling, CNC Milling

Features

Premium cemented carbide
XT480 universal grade
PVD coated
Four cutting edges
Excellent wear resistance
Smooth chip evacuation
Long tool life
Stable cutting performance

Applications

90 Shoulder Milling
Face Milling
CNC Milling
Roughing
Semi-Finishing

Suitable Materials

Carbon Steel
Alloy Steel
Stainless Steel
Cast Iron
Non-Ferrous Metals

Corrosion Resistance

Good corrosion resistance
High oxidation resistance
Excellent wear resistance
Suitable for dry and wet machining
