The Mitsubishi NNMU200708ZEN-MP VP15TF is a premium double-sided indexable carbide milling insert designed for high-performance face milling and shoulder milling operations. Manufactured with Mitsubishi's advanced VP15TF PVD coating, it offers excellent wear resistance, heat resistance, and long tool life while machining steel, stainless steel, hardened materials, cast iron, and heat-resistant alloys.

The MP chipbreaker geometry is optimized for medium cutting conditions, providing stable chip control, reduced cutting forces, and improved surface finish. Its multi-edge design increases productivity while lowering tooling costs.

Technical Specifications

Specification	Value
Product Type	Indexable Milling Insert
Brand	Mitsubishi Materials
Model	NNMU200708ZEN-MP VP15TF
Grade	VP15TF
Insert Style	NNMU
Material	Solid Carbide
Coating	VP15TF PVD (Miracle Al-Ti-N)
Shape	Round
Hand	Neutral
Chipbreaker	MP (Medium Cutting)
Inscribed Circle (IC)	20 mm
Thickness (S)	7.28 mm (some distributors round to 8.0 mm)
Corner Radius (RE)	0.8 mm
Wiper Edge (BS)	1.0 mm
Hole Diameter	5.7 mm
Lead Angle	0
CNC Compatibility	Size 14
Weight	Approximately 810 grams per insert (estimated from manufacturer dimensions; exact individual weight is not officially specified)
Color	Bronze/Gold PVD coated
Number of Cutting Edges	Multiple cutting edges (double-sided design)

The official Mitsubishi dimensions list IC = 20 mm, thickness = 7.28 mm, BS = 1 mm, RE = 0.8 mm, neutral hand.

Suitable Materials

Carbon Steel
Alloy Steel
Stainless Steel
Cast Iron
Hardened Steel
Heat Resistant Alloys
Titanium Alloys (light to medium machining)

Applications

Face Milling
Shoulder Milling
CNC Milling
General Purpose Milling
Production Machining
Heavy Industrial Machining

Features

Premium micro-grain carbide substrate
VP15TF PVD coating for extended tool life
Excellent wear and oxidation resistance
Stable machining at high cutting speeds
Superior chip evacuation
Reduced cutting forces
Excellent surface finish
Double-sided insert for economical operation
Suitable for dry and wet machining
High resistance to thermal cracking

Advantages

Longer insert life
Consistent machining accuracy
Reduced machining costs
High productivity
Excellent dimensional stability
Reliable performance in CNC machining centers

More Description

Buy Mitsubishi NNMU200708ZEN-MP VP15TF carbide milling insert with VP15TF PVD coating. Ideal for face milling, shoulder milling, steel, stainless steel, cast iron, and CNC machining. High wear resistance and long tool life.

Keywords

Mitsubishi NNMU200708ZEN-MP VP15TF
NNMU200708ZEN-MP
VP15TF Insert
Carbide Milling Insert
CNC Milling Insert
Face Milling Insert
Round Milling Insert
Mitsubishi Carbide Insert
Indexable Milling Insert
CNC Cutting Tool

Frequently Asked Questions (FAQs)

1. What is the Mitsubishi NNMU200708ZEN-MP VP15TF used for?

The Mitsubishi NNMU200708ZEN-MP VP15TF is an indexable carbide milling insert designed for face milling, shoulder milling, and general CNC machining applications. It delivers excellent performance in medium cutting conditions.

2. Which materials can this insert machine?

It is suitable for machining:

Carbon Steel
Alloy Steel
Stainless Steel
Cast Iron
Hardened Steel
Heat-resistant alloys
Selected titanium alloys under appropriate cutting conditions

3. What does the VP15TF grade mean?

VP15TF is Mitsubishi Materials' PVD-coated carbide grade engineered for high wear resistance, heat resistance, and longer tool life. It performs well across a wide range of materials and cutting conditions.

4. What is the MP chipbreaker?

The MP chipbreaker is designed for medium machining applications. It provides stable chip control, smooth cutting action, and consistent surface finish.

5. Is this insert suitable for CNC milling machines?

Yes. The NNMU200708ZEN-MP VP15TF is specifically designed for CNC milling centers as well as conventional milling machines using compatible indexable cutters.

6. What is the insert shape?

This insert features a round cutting profile with multiple cutting edges, making it ideal for efficient face milling and heavy-duty machining.

7. What are the dimensions of this insert?

Inscribed Circle (IC): 20 mm
Thickness: 7.28 mm
Corner Radius: 0.8 mm
Wiper Edge: 1.0 mm
Hole Diameter: 5.7 mm

8. Does the insert have multiple cutting edges?

Yes. The double-sided design provides multiple usable cutting edges, helping reduce tooling costs and maximize insert life.

9. Can this insert be used for dry machining?

Yes. The VP15TF coating performs well in both dry and wet machining operations, depending on the workpiece material and cutting parameters.

10. What are the main benefits of this insert?

Long tool life
High wear resistance
Excellent chip control
Reduced cutting forces
Superior surface finish
Stable machining performance
Lower machining cost per component

11. Is this an original Mitsubishi Materials product?

When purchased from an authorized distributor or trusted supplier, the NNMU200708ZEN-MP VP15TF is supplied as a genuine Mitsubishi Materials carbide insert.

12. How is this insert packaged?

The insert is commonly supplied individually or in manufacturer packs of 10, depending on the seller.

13. Which cutter holders are compatible with this insert?

The insert is compatible with milling cutters designed to accept the NNMU200708 insert style. Always verify compatibility with your cutter manufacturer's specifications.

14. What industries commonly use this insert?

It is widely used in:

Automotive manufacturing
Aerospace
General engineering
Mold and die manufacturing
Precision machining
Heavy equipment production

15. Why should I choose the Mitsubishi NNMU200708ZEN-MP VP15TF?

Its premium carbide substrate, advanced VP15TF coating, and optimized MP geometry provide reliable performance, extended tool life, excellent surface finish, and cost-effective machining in demanding production environments.

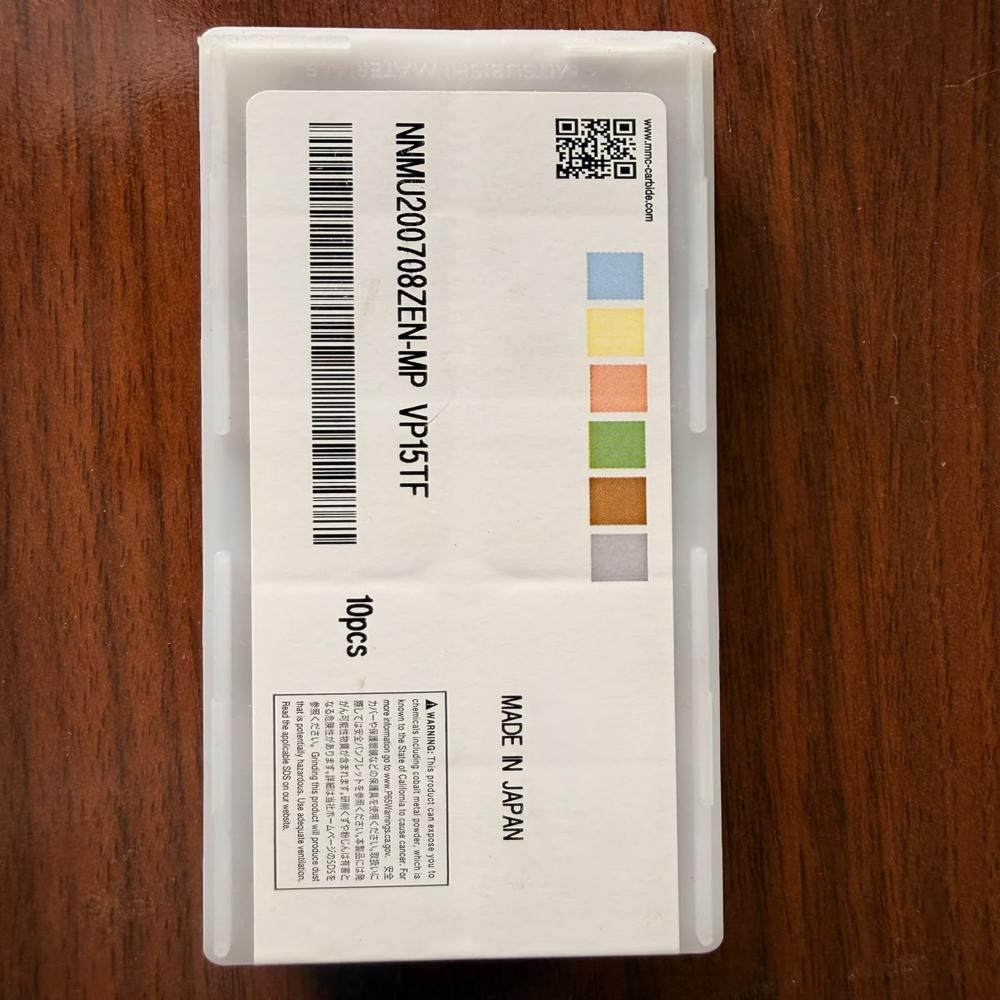

NNMU200708ZEN-MP VP15TF Carbide Milling Insert | CNC Face Milling Insert

Price 750.0 INR/ Piece
