About SPMG060204 ZC AP5015 Carbide Drilling Insert

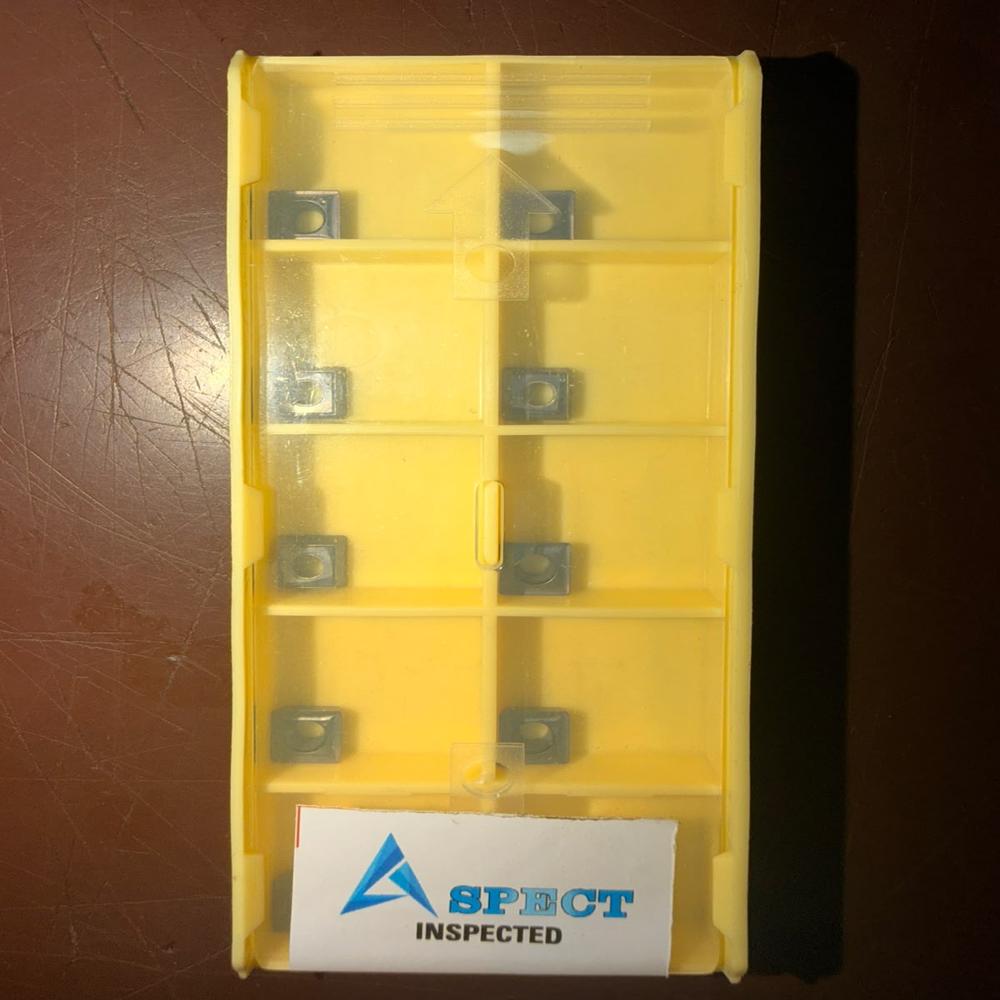

SPMG060204 ZC AP5015 Carbide Drilling Insert

Product Description

The SPMG060204 ZC AP5015 is a premium square carbide drilling insert from Mitsubishi Materials, designed for high-performance indexable drilling operations. Featuring the ZC geometry and AP5015 PVD-coated grade, it provides excellent wear resistance, stable chip evacuation, and long tool life. It is suitable for drilling steel, stainless steel, and cast iron on CNC machining centers and lathes.

Technical Specifications

Specification	Details
Brand	Mitsubishi Materials
Model	SPMG060204 ZC AP5015
Product Type	Indexable Drilling Insert
Material	Cemented Carbide
Grade	AP5015
Coating	PVD Coated
Shape	Square
Insert Type	Positive
Geometry	ZC
Insert Size	06
Workpiece Material	Steel, Stainless Steel, Cast Iron
ISO Application	P, M, K
ISO Tolerance	M
Insert Clearance	0
Inscribed Circle (IC)	6.8 mm
Thickness (S)	2.38 mm
Corner Radius (RE)	0.4 mm
Number of Cutting Edges	4
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 1.5 g
Pack Size	Usually 10 Pieces
Application	Indexable Drilling, CNC Drilling, General Machining

Features

Premium cemented carbide
AP5015 PVD coating
ZC geometry
Excellent wear resistance
Stable chip control
Long tool life
High drilling accuracy
Suitable for dry and wet machining

Applications

CNC Drilling
Indexable Drilling
General Drilling
Production Machining

Suitable Materials

Carbon Steel
Alloy Steel
Stainless Steel
Cast Iron

Corrosion Resistance

Good corrosion resistance
Excellent oxidation resistance
High wear resistance
Suitable for dry and coolant machining
