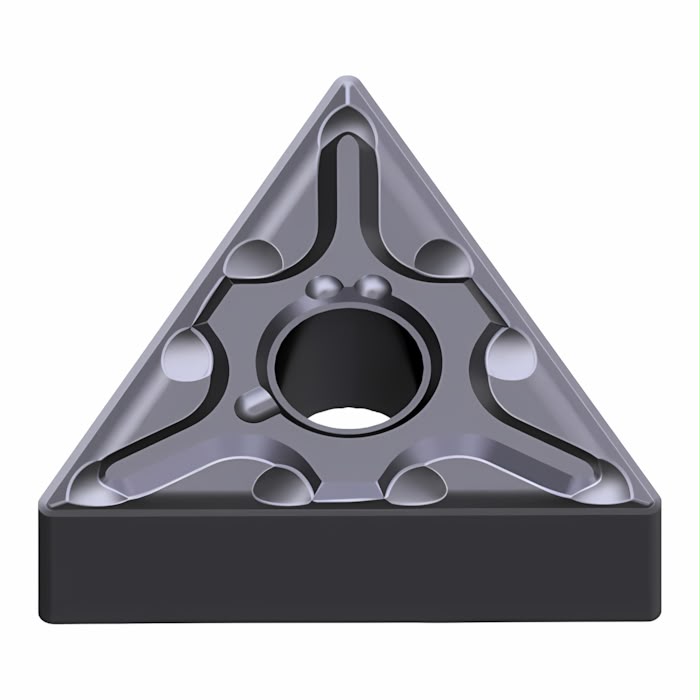

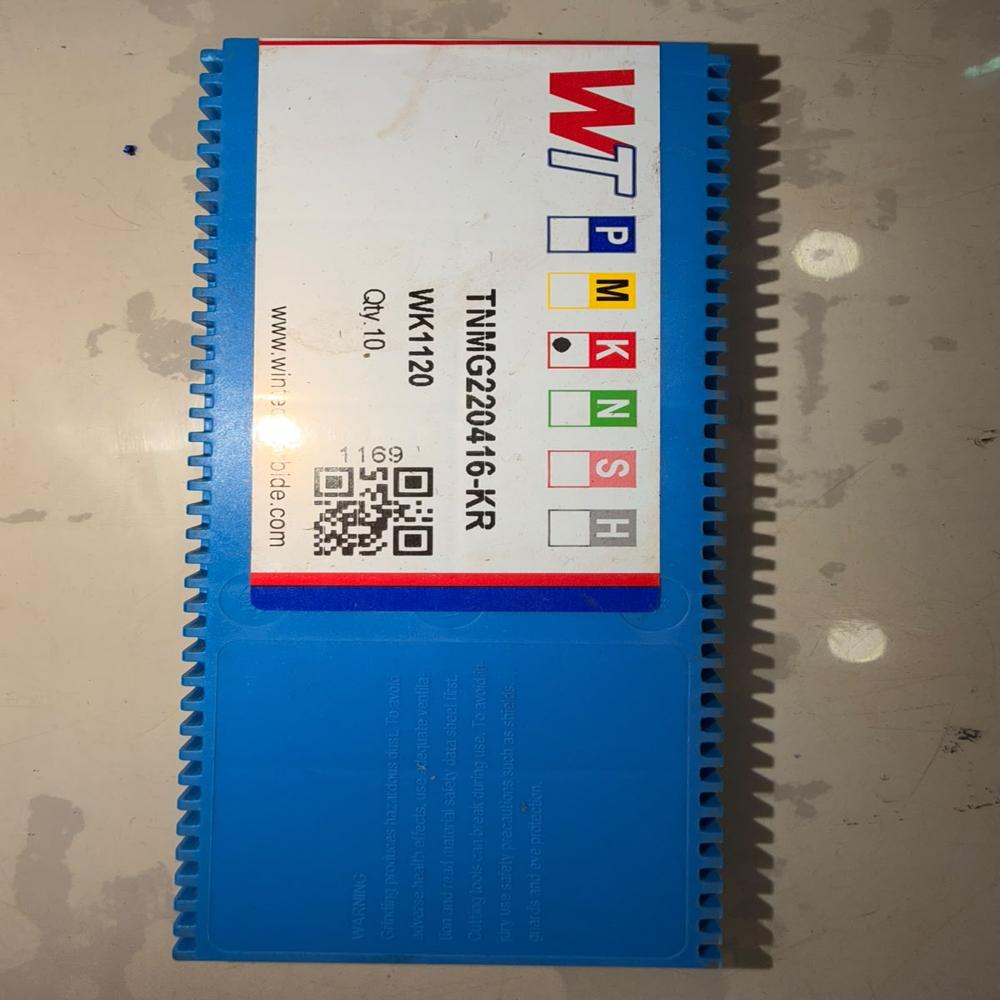

Send InquiryTNMG220416 KR
Price 320.0 INR/ Piece
TNMG220416 KR Specification
- Shape
- Triangular (60 )
- Grade
- WK1120
- Thickness
- 4.76 Millimeter (mm)
- Usage
- INDUSTRIAL
- Material
- Tungsten, carbide
- Size
- 22
- Product Type
- Indexable Turning Insert
- Application
- External Turning, Internal Turning, Facing Rough Turning ,Semi-Finishing Profile Turning ,CNC Turning ,General Machining
- Weight
- 11.5 Grams (g)
- Color
- BLACK
TNMG220416 KR Trade Information
- Minimum Order Quantity
- 30 Pieces
- Delivery Time
- 5 Days
About TNMG220416 KR
The TNMG220416-KR is a premium double-sided triangular carbide turning insert designed for medium to rough turning operations. Featuring a 60 triangular negative geometry and KR chipbreaker, it provides excellent chip control, high edge strength, and stable machining performance. The insert is suitable for external turning, facing, profiling, and general-purpose machining on CNC lathes and conventional turning machines. It is commonly used for machining steel, stainless steel, cast iron, and alloy steels.
Technical Specifications| Specification | Details |
|---|---|
| Product Type | Indexable Turning Insert |
| Model | TNMG220416-KR |
| Material | Cemented Carbide |
| Shape | Triangular (60) |
| Insert Type | Negative, Double-Sided |
| Chipbreaker | KR |
| Hand | Neutral |
| Inscribed Circle (IC) | 12.7 mm |
| Insert Size | 22 |
| Thickness (S) | 4.76 mm |
| Corner Radius (RE) | 1.6 mm |
| Hole Diameter (D1) | 5.16 mm |
| Included Angle | 60 |
| Number of Cutting Edges | 6 |
| Mounting Style | Screw Clamp |
| Weight (1 Piece) | Approx. 11.5 g |
| Color | Grade Dependent |

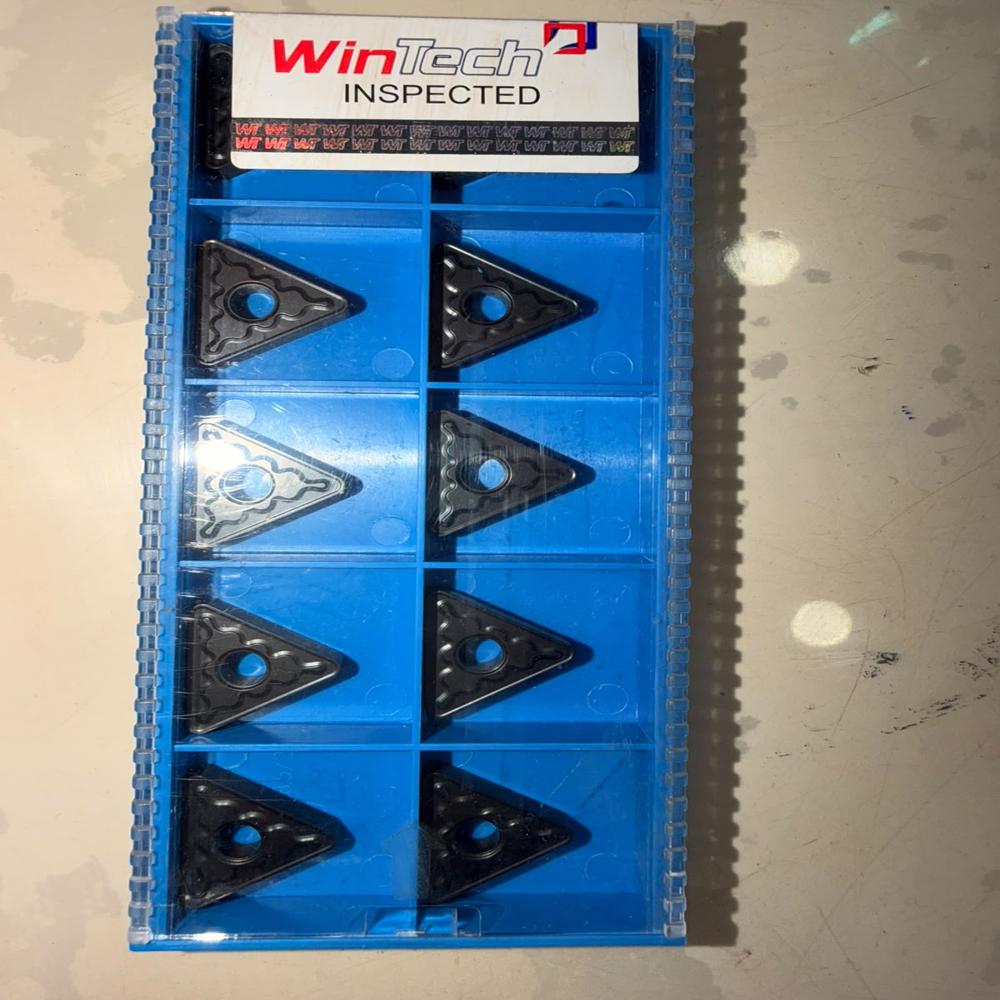

| Pack Size | Usually 10 Pieces |
The weight is approximately 11.5 g per insert, based on published specifications for TNMG220416 inserts of the same ISO size.
Features- Double-sided triangular insert
- Six usable cutting edges
- KR chipbreaker for efficient chip control
- High wear resistance
- Excellent edge strength
- Stable machining performance
- Suitable for medium and rough turning
- High productivity
- Long tool life
- Compatible with ISO TNMG tool holders
- External Turning
- Internal Turning
- Facing
- Rough Turning
- Semi-Finishing
- Profile Turning
- CNC Turning
- General Machining
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Tool Steel
- Excellent chip evacuation
- Reduced cutting forces
- Superior dimensional accuracy
- Longer insert life
- Cost-effective due to six cutting edges
- Reliable performance in continuous and interrupted cuts
- Good corrosion resistance during storage
- Excellent oxidation resistance (coated grades)
- High wear resistance
- Suitable for dry and wet machining depending on the insert grade
- TNMG220416-KR
- TNMG220416 KR Insert
- Carbide Turning Insert
- TNMG Carbide Insert
- Triangular Turning Insert
- Indexable Turning Insert
- CNC Turning Insert
- Negative Turning Insert
- KR Chipbreaker Insert
- External Turning Insert
- Facing Insert
- Rough Turning Insert
- Carbide Lathe Insert
- Steel Turning Insert
- Stainless Steel Turning Insert
- Cast Iron Turning InsERT
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Carbide Insert Category
SOMT12T308PEER-JM VP15TF
Price 450.0 INR / Piece
Minimum Order Quantity : 30 Pieces
Usage : Industrial
Material : carbide
Shape : Square

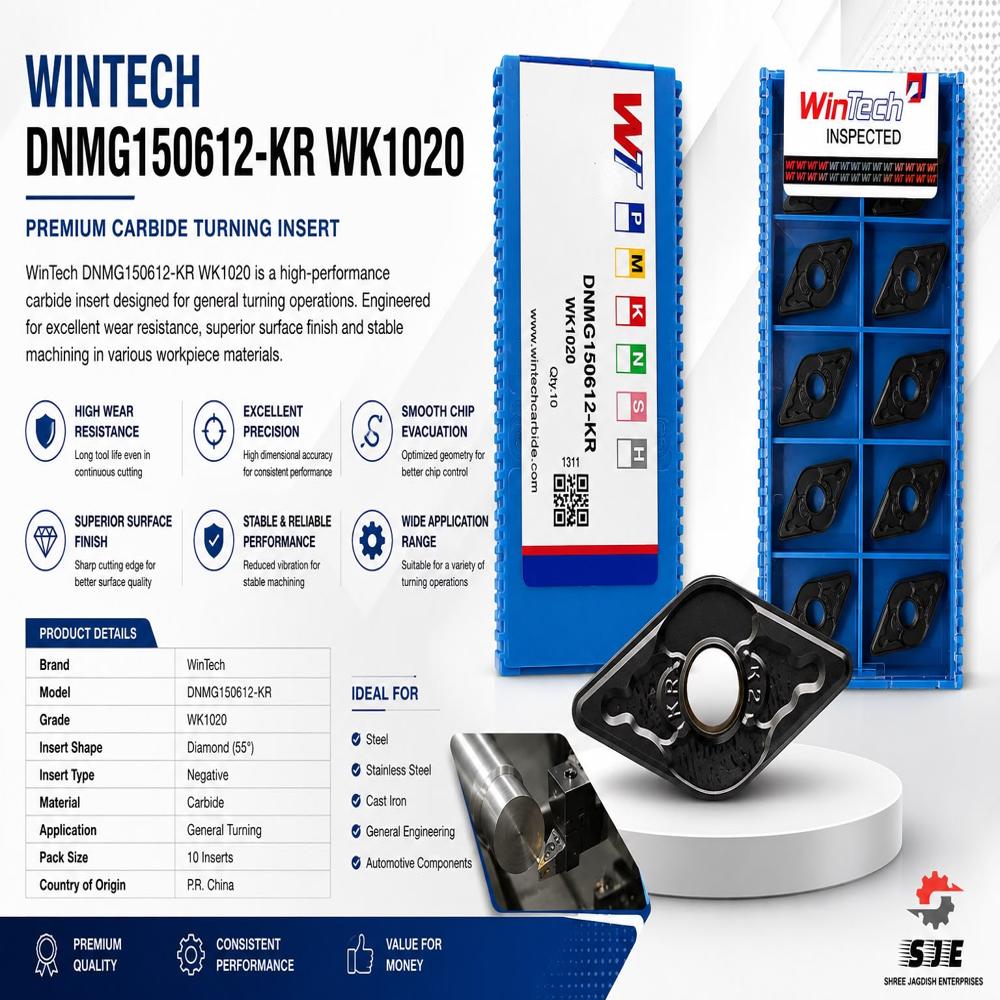

DNMG150612-KR Carbide Turning Insert
Price 350.0 INR / Piece
Minimum Order Quantity : 30 Pieces
Usage : INDUSTRIAL
Material : carbide
Shape : 55 Diamond (Rhombic)

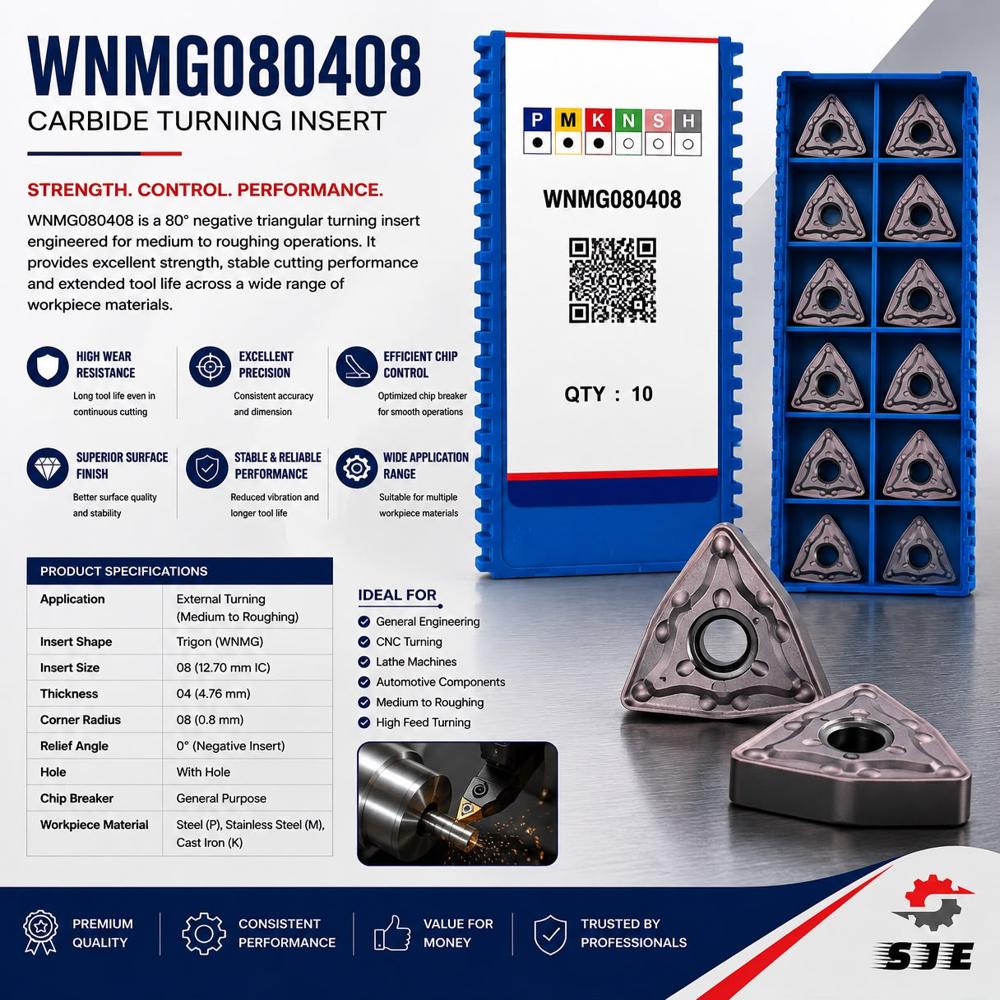

Wnmg080408 Turning Insert
Price 220.0 INR / Piece
Minimum Order Quantity : 30 Pieces
Usage : INDUSRIAL
Material : carbide
Shape : Trigon (80 )

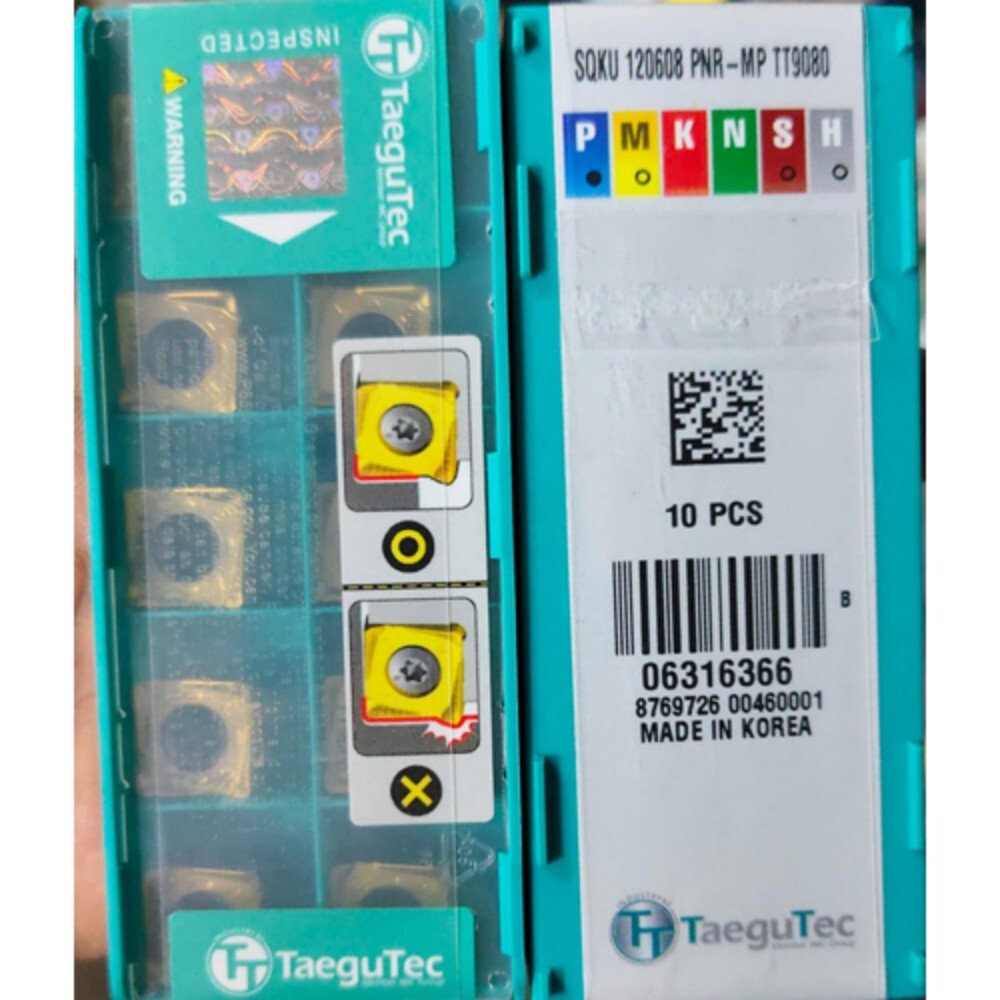

Carbide Insert SQKU 120608 PNR-MP TT9080
